Запчасти Case IH STEIGER 540 (21.155.AN[01]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 500 HD, 540 HD, BSN ZFF308000 (21) - TRANSMISSION

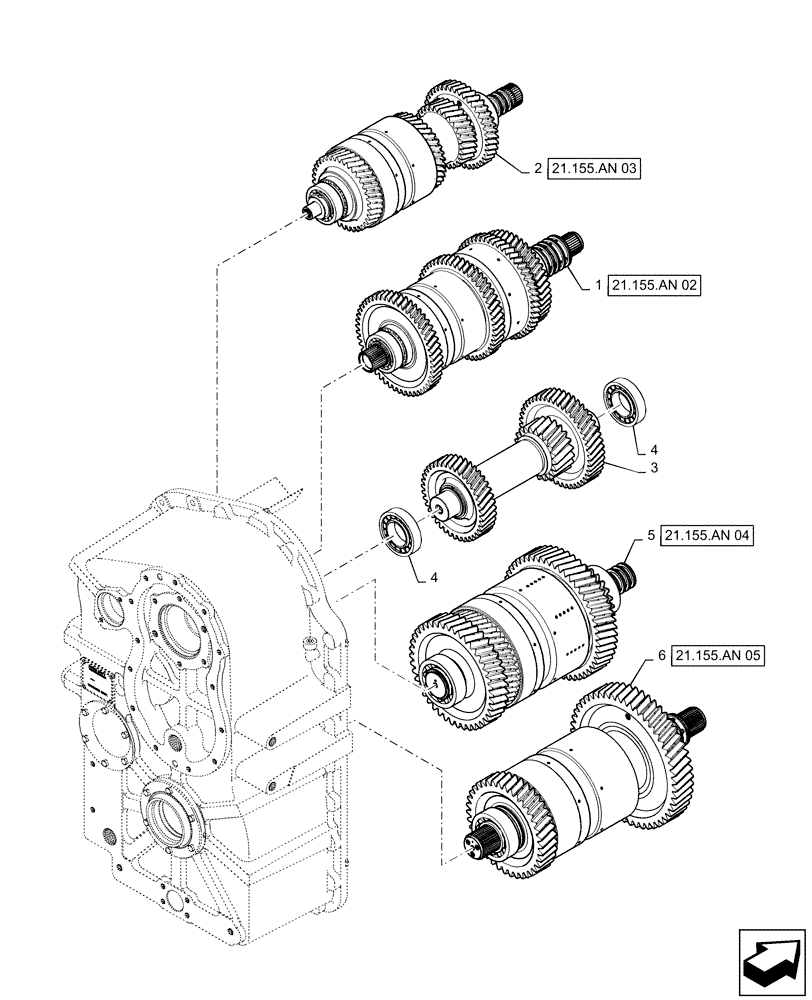

Схема запчастей Case IH STEIGER 540 - (21.155.AN[01]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 500 HD, 540 HD, BSN ZFF308000 (21) - TRANSMISSION
4
6
3
5
2
21.155.an 03
21.155.an 05
21.155.an 02
21.155.an 04
4
1

Артикул

Название

Примечание

Количество

1

87552050

CLUTCH INPUT SHAFT

1st Shaft, 7" Clutch, 8.5C

1шт.

2

87350264

CLUTCH INPUT SHAFT

2nd Shaft, 7" Clutch, 8.5C

1шт.

3

47391078

GEAR SHAFT

3rd Shaft

1шт.

4

87431397

ROLLER BEARING,60mm ID x 110mm OD x 38mm W

Tapered

2шт.

5

87350309

CLUTCH INPUT SHAFT

4th Shaft, 9" Clutch, 8.5C

1шт.

6

87350342

CLUTCH INPUT SHAFT

5th Shaft, 8" Clutch, 8.5C

1шт.

Выбрано товаров: 6
