Запчасти Case IH STEIGER 540 (21.113.AD[07]) - TRANSMISSION MOUNTING, 8.5C, 500 HD, 540 HD, ASN ZFF308001 (21) - TRANSMISSION

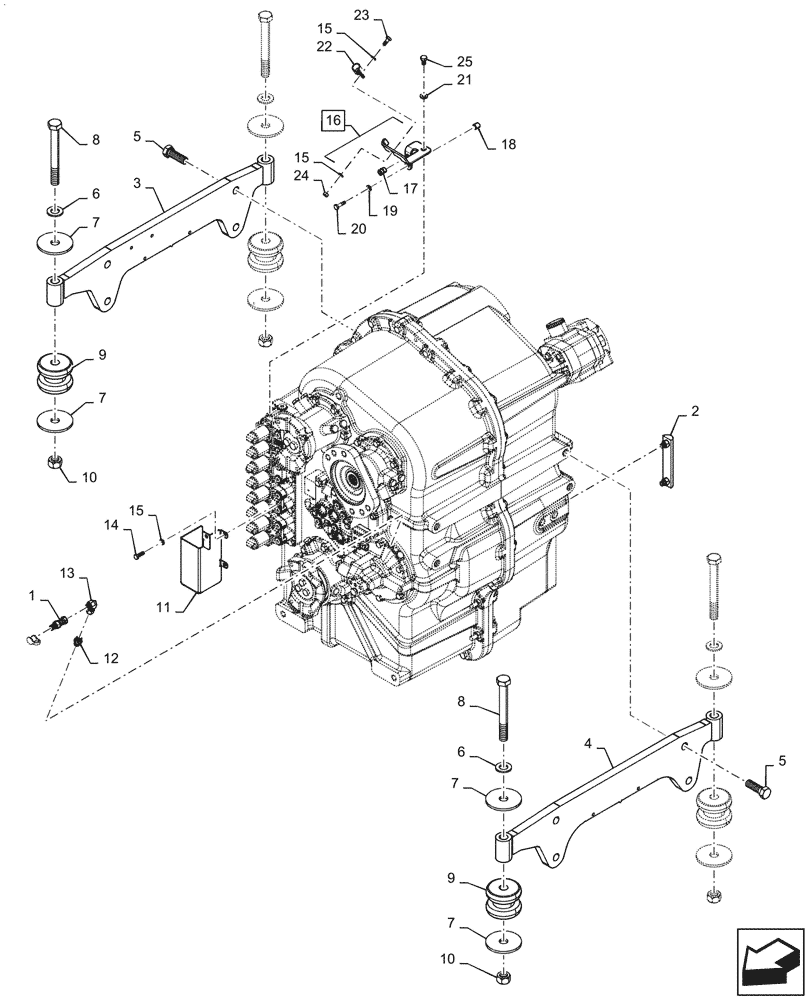

Схема запчастей Case IH STEIGER 540 - (21.113.AD[07]) - TRANSMISSION MOUNTING, 8.5C, 500 HD, 540 HD, ASN ZFF308001 (21) - TRANSMISSION
5
15
25
7
7
9
15
5
18
6
17
20
19
10
10
23
12
16
15
14
1
13
8
6
7
22
3
24
7
8
9
2
4
21
11

Артикул

Название

Примечание

Количество

1

190117A1

COUPLING

Diagnostic

1шт.

2

L116247

GAUGE

Liquid Level

1шт.

3

84204430

PLATE

Transmission Mounting

1шт.

4

84204429

PLATE

Transmission Mounting

1шт.

5

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

7

379611A1

WASHER

Transmission Mount

8шт.

8

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

9

340967A1

RUBBER MOUNTING

2-Piece

4шт.

10

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

11

47498781

COVER

Transmission Range Valve

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

48085091

Transmission Wiring

BRACKET

1шт.

17

379540A1

INSERT,M8

1шт.

18

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

19

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 25
