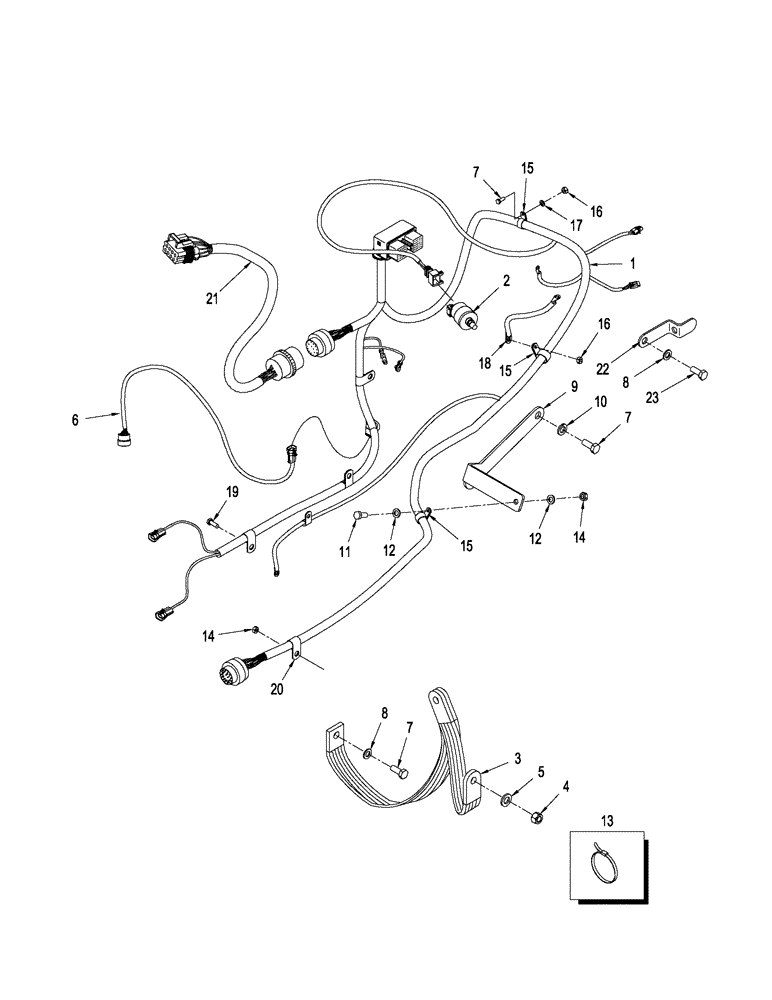

Запчасти Case IH STEIGER 535 (04-15) - HARNESS - ENGINE, STEIGER 535 (04) - ELECTRICAL SYSTEMS

1

87541883

HARNESS

Engine

1шт.

2

293797A1

RESTRICTION SWITCH

Air

1шт.

3

87397281

GROUND STRAP

Starter Ground to, Serial Range: Engine-Chassis

1шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

87308658

HARNESS

Fan Drive

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

87422995

BRACKET

Support, Engine Harness

1шт.

10

892-11012

LOCK WASHER,M12

2шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie, 7 - 8"

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

5шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

17

892-11010

LOCK WASHER,M10

3шт.

18

87353517

GROUND CABLE

A/C Compressor

1шт.

19

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

20

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

21

87308658

HARNESS

Fan Drive, 15L Engine

1шт.

22

87676921

BRACKET

Engine Harness

1шт.

23

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.
