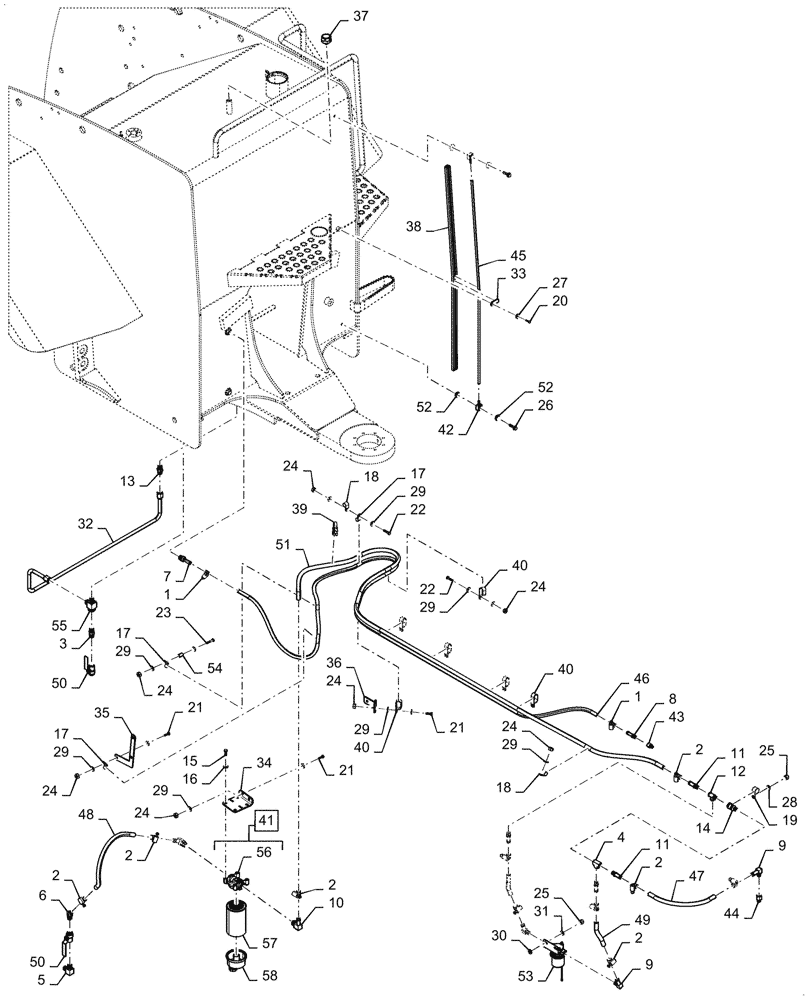

Запчасти Case IH STEIGER 535 (03-04) - FUEL LINES, STEIGER 535 (03) - FUEL SYSTEM

1

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

2

214-1408

HOSE CLAMP,11.2mm - 19.8mm

10шт.

3

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

4

217-12

TEE,3/8"-18 NPTF Fem

1шт.

5

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

6

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

7

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

8

217-229

FITTING,1/2" Hose X 1/4" NPTF Beaded

1шт.

9

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

3шт.

10

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

11

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

4шт.

12

217-52

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

1шт.

13

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

14

87365506

CHECK VALVE

Fuel Line

1шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

19

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

20

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

22

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

26

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

15шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

31

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

32

84142315

FUEL TUBE,15.88mm OD

Assy, Crossover

1шт.

33

402800A1

BRACKET

Fuel Sight Gauge

1шт.

34

87417445

BRACKET

Fuel Filter

1шт.

35

87536383

BRACKET

Fuel Hose

1шт.

36

87599957

BRACKET

D - Clamp

1шт.

37

435545A1

BREATHER

Fuel

1шт.

38

349868A1

CHANNEL

Fuel Sight Gauge

1шт.

39

327144A1

STRAP,328mm L

1шт.

40

R54363

CLAMP

Double, 19mm W

6шт.

41

87417454

FILTER ASSY

Fuel, Incl 56 - 58

1шт.

42

352767A1

FITTING

Sight Gauge

2шт.

43

86990397

FITTING

1шт.

44

86990398

FITTING

1шт.

45

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge

1шт.

46

31-3083

HOSE,12.70 mm ID x 3733.8 mm

Fuel Return

1шт.

47

87362697

FUEL HOSE

Supply, Pump to Engine

1шт.

48

87308466

FUEL HOSE,15.9mm ID x 584mm L

Supply, Tank to Filter

1шт.

49

87362717

HOSE,15.9mm ID x 152.4mm L

Supply, Pump Return and Supply

2шт.

50

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

2шт.

51

296077A1

HOSE

Suuply, Pump

1шт.

52

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

53

87282080

FUEL PUMP,12V, 12A

Supply

1шт.

54

414937A1

SPACER

Tube

1шт.

55

31-1000

TEE

1шт.

56

87417455

FILTER HEAD

Fuel

1шт.

57

87410186

FUEL FILTER

Case

1шт.

58

87410185

FILTER BOWL

Fuel, Clear

1шт.
