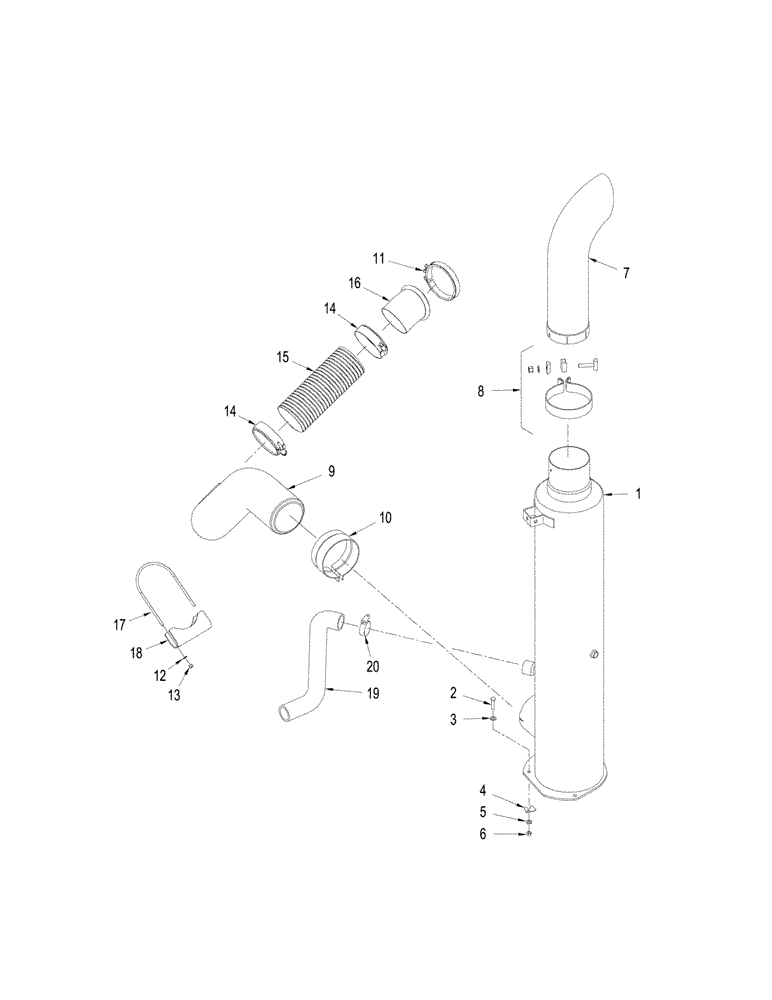

Запчасти Case IH STEIGER 535 (02-24) - EXHAUST SYSTEM - WHEEL TRACTOR, 10" MUFFLER, STEIGER 535 (02) - ENGINE

1

87443197

MUFFLER

with Spark Arrestor

1шт.

1

87350582

MUFFLER

without Spark Arrestor

1шт.

2

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

4

404824A1

SHIM

Muffler Mounting

1шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

6

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

7

87430632

ELBOW

Muffler Exhaust, Inc. 8

1шт.

8

87430634

CLAMP,159.5mm ID

Muffler

1шт.

9

87618179

EXHAUST SYSTEM PIPE

Doublewall

1шт.

10

357686A1

ASSEMBLY

Exhaust, 6"

1шт.

11

31-1316

MOUNTING CLIP

1шт.

12

495-11034

WASHER,5/16", SAE

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

87406903

COLLAR CLAMP

2шт.

15

87376393

EXHAUST MANIFOLD,5.03 mm ID x 5.27 mm OD x 13 mm L

Flexible

1шт.

16

87319225

FLANGE

Flanged

1шт.

17

87439948

U-BOLT

BOLT "U" 6"

1шт.

18

87715842

BRACKET

Support, Exhuast Tube

1шт.

19

87304242

HOSE,50.80 mm ID x 374.70 mm

Aspirator

1шт.

20

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.
