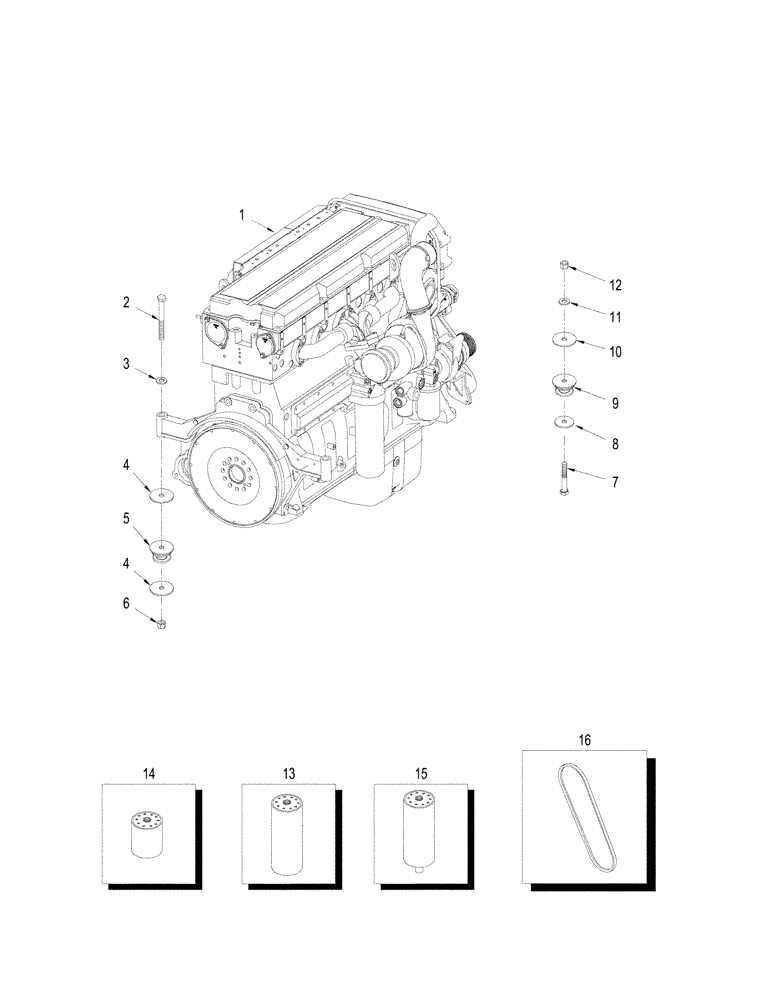

Запчасти Case IH STEIGER 535 (02-18) - ENGINE MOUNTING AND ATTACHING PARTS, STEIGER 535 (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

Engine, Cummins 15L QSX

1шт.

2

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

2шт.

3

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

4

379611A1

WASHER

Engine Mounting, Rear

4шт.

5

361187A1

ISOLATOR

Rubber, Engine Mounting

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

8

19-408

WASHER

Engine Mounting, Front

2шт.

9

435439A1

RUBBER MOUNTING

Engine Mounting

2шт.

10

51-128

WASHER

.656" x 3.50" x .187" Thk, Engine Mounting, Front

2шт.

11

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

12

832-10416

NUT,M16 x 2, Cl 8

2шт.

13

84372057

ENGINE OIL FILTER

1шт.

14

84477273

COOLANT FILTER

1шт.

15

84477362

FUEL FILTER

1шт.

16

325289A1

V-BELT,1013.50 mm L, 12 Ribs

Water Pump

1шт.

16

87366407

BELT,3.56 mm W, 6 Ribs

Accessory Drive, Alternator & A/C

1шт.
