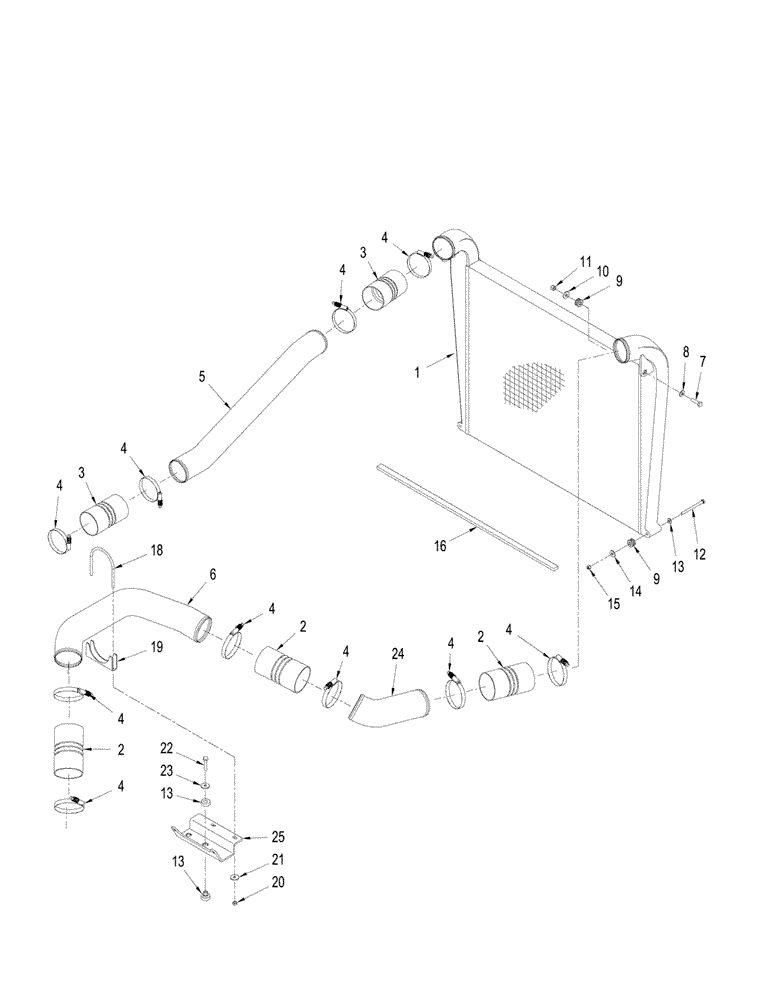

Запчасти Case IH STEIGER 535 (02-14) - AIR COOLER MOUNTING, STEIGER 535 (02) - ENGINE

1

87434343

AFTERCOOLER

Charged Air

1шт.

2

251400A1

BELLOWS

Tube, RH

3шт.

3

87306140

BELLOWS

Tube, LH

2шт.

4

87599617

CLAMP,103.2mm - 111.1mm

T-Bolt Constant Torque

10шт.

5

87434347

AIR INTAKE TUBE

Charged Air, LH

1шт.

6

87364150

AIR INTAKE TUBE,101.6 mm OD

Charged Air, RH

1шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

8

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

9

434177A1

ISOLATOR

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

2шт.

13

87447450

ISOLATOR

Cooler Mounting

2шт.

14

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

16

87438150

SEAL

Foam

1шт.

17

87343564

BRACKET

Mounting

1шт.

18

87343552

U-BOLT

1шт.

19

87343557

CLAMP

Charged Air Tube

1шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

495-51041

WASHER,3/8"

2шт.

22

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

23

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

2шт.

24

87365421

AIR INTAKE TUBE,4" OD

Charged Air

1шт.

25

87364149

BRACKET

Support, Charged Air Tube

1шт.
