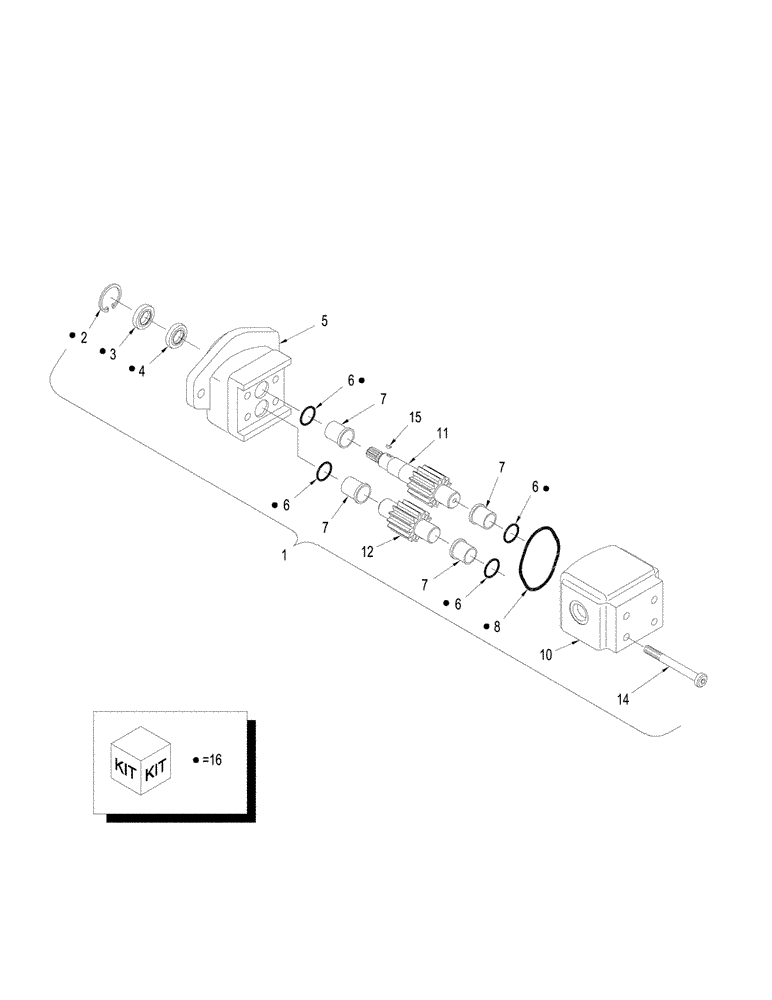

Запчасти Case IH STEIGER 535 (02-07) - HYDRAULIC FAN MOTOR ASSY (02) - ENGINE

1

87356899

HYDRAULIC MOTOR

Fan, 33 cc, Inc. 1 - 15, Serial Range: -Z8F110157

1шт.

1

87724957R

REMAN-HYD MOTOR

1шт.

1

87724957C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

87724957

HYDRAULIC MOTOR,GEAR, 33 CC

Fan, Inc. 1-15, Start Serial: Z8F110157

1шт.

1

87724957R

REMAN-HYD MOTOR

Reman for New PN 87724957

1шт.

1

87724957C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Flange

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

Bushing

4шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

4шт.

10

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Drive Gear

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft, Idler Gear

1шт.

13

NSS

NOT SOLD SEPARAT

Nut

4шт.

14

NSS

NOT SOLD SEPARAT

Bolt

4шт.

15

NSS

NOT SOLD SEPARAT

Key, Woodruff

1шт.

16

87540545

KIT

Seal, Serial Range: -Z8F110157

1шт.

16

87470196

SERVICE KIT

Seal, Start Serial: Z8F110157

1шт.
