(05.100.03[01]) - FILTERS, 535

Запчасти Case IH STEIGER 535 (05.100.03[01]) - FILTERS, 535 (18) - MISCELLANEOUS

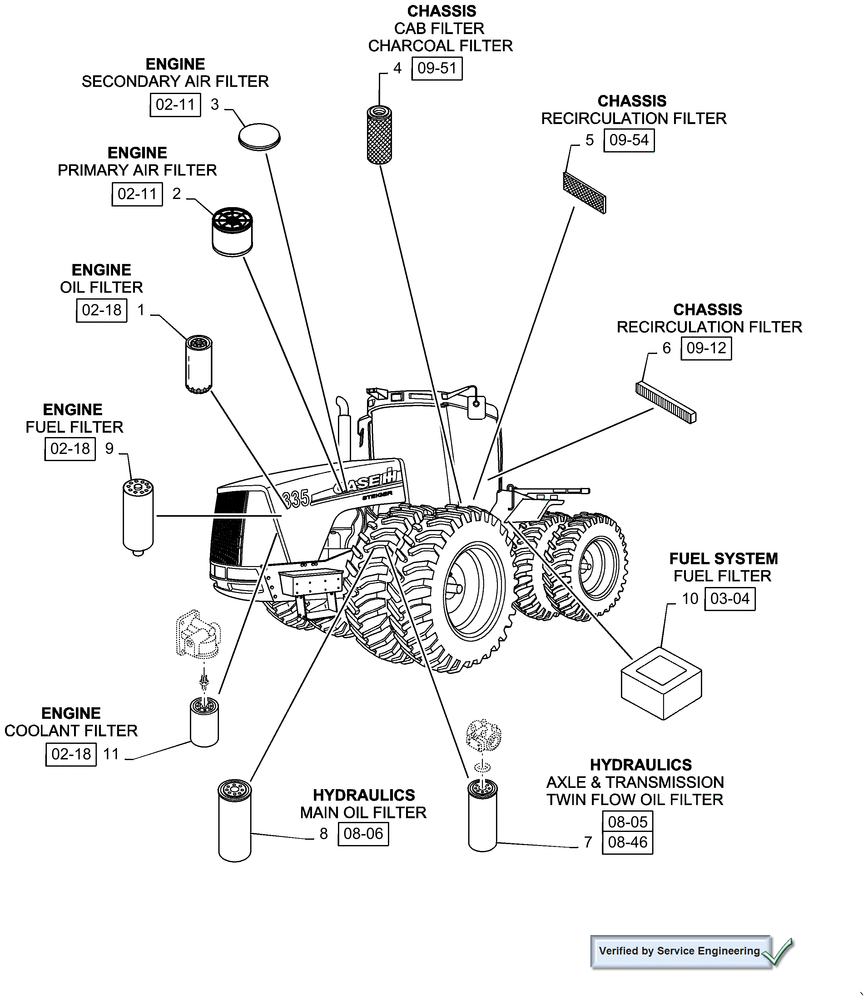

Схема запчастей Case IH STEIGER 535 - (05.100.03[01]) - FILTERS, 535 (18) - MISCELLANEOUS
08-05
02-11
8
02-18
02-18
08-46
03-04
3
6
1
5
08-06
2
02-18
4
11
10
9
09-12
7
09-54
02-11
09-51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84372057

ENGINE OIL FILTER

Spin-On

1шт.

2

87727665

AIR FILTER

Primary

1шт.

3

87443714

AIR FILTER

Secondary

1шт.

4

87684088

CAB FILTER,CAB

1шт.

4

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

5

87409377

FILTER

Recirculation

1шт.

6

87408613

INSULATION

Recirculation

1шт.

7

84239751

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

7

84239751

HYDRAULIC OIL FILTER

High Flow

1шт.

8

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Main

1шт.

9

84477362

FUEL FILTER

Engine Mounted

1шт.

10

84477370

FUEL FILTER,Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron

Aux Element

1шт.

11

84477273

COOLANT FILTER

Spin-On

1шт.

Выбрано товаров: 13
