Запчасти Case IH STEIGER 535 (09-63) - TOW CABLE (09) - CHASSIS

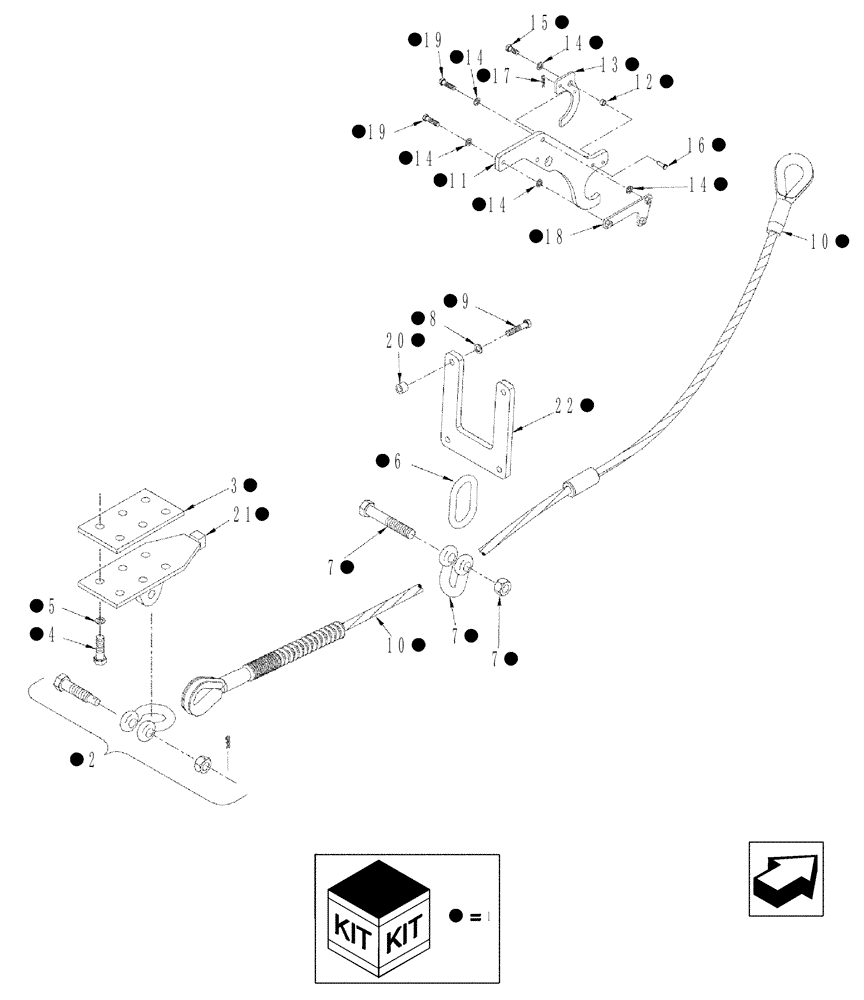

Схема запчастей Case IH STEIGER 535 - (09-63) - TOW CABLE (09) - CHASSIS
1
14
14
13
1
14
8
1
6
19
18
1
1
1
10
1
3
7
22
21
11
1
1
4
14
12
1
2
1
1
1
16
1
7
1
1
7
1
1
1
1
15
1
20
1
1
19
1
1
1
17
9
1
10
1
14
1
1
5
1

Артикул

Название

Примечание

Количество

1

719546003

KIT

Not Shown; Order For BSN Z7F108001. For ASN, Order 719546006.

1шт.

1

719546006

SERVICE KIT

Tow Cable, Inc. 2-22; Order ASN Z7F108001

1шт.

2

87539843

SHACKLE

Inc. Hardware

1шт.

3

87548081

MOUNTING PLATE

1шт.

4

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

6шт.

5

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

6

409753A1

LINK,196.85mm L

1шт.

7

369838A1

SHACKLE

1шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

10

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

Tow

1шт.

11

408795A1

HOOK

Side

1шт.

12

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

13

408796A1

LATCH

Side Hook

1шт.

14

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

7шт.

15

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

16

728-1240

CLEVIS PIN,M12 x 40

1шт.

17

435425A1

PIN

Hair

1шт.

18

385380A1

PLATE ASSY.

Mounting

1шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

20

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

4шт.

With 450 Series Axles

1шт.

21

87548080

MOUNTING PLATE

Tow Cable

1шт.

22

408793A1

PLATE

Axle Cable

1шт.

Выбрано товаров: 24
