Запчасти Case IH STEIGER 535 (02-03) - RADIATOR AND HOSES, STEIGER 535 (02) - ENGINE

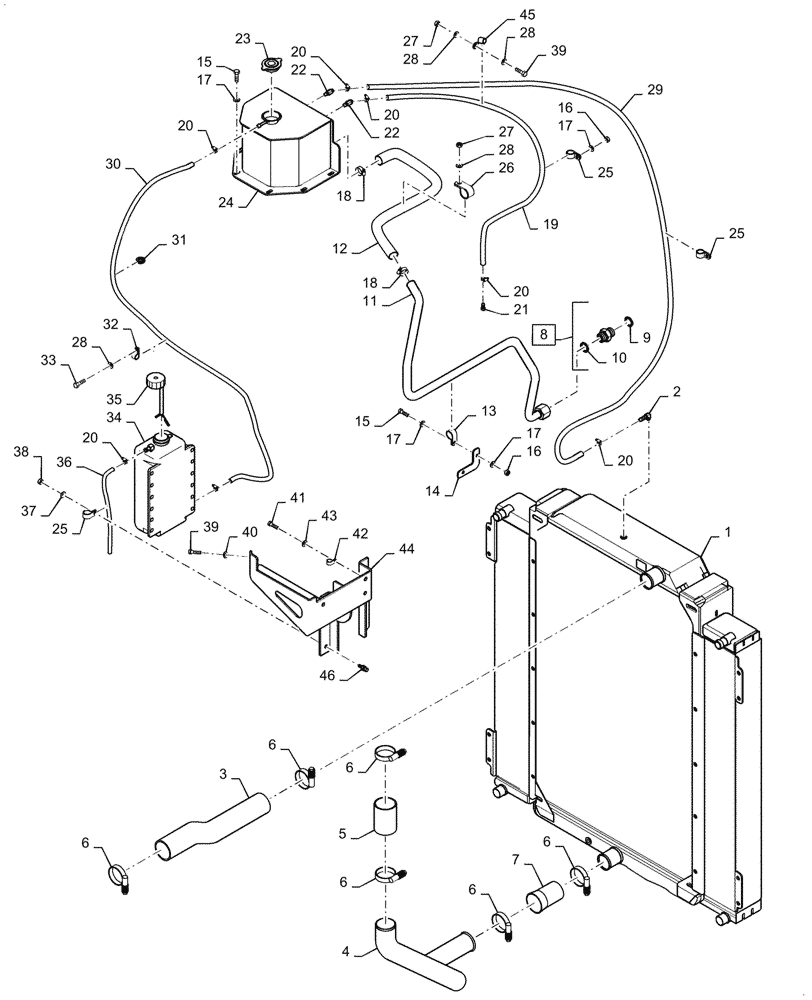

Схема запчастей Case IH STEIGER 535 - (02-03) - RADIATOR AND HOSES, STEIGER 535 (02) - ENGINE
20
11
28
28
5
15
33
3
6
20
42
39
18
17
34
23
27
12
6
16
6
9
20
25
28
27
15
16
46
31
24
17
36
22
10
17
2
37
43
21
39
7
1
18
32
30
22
4
6
17
20
28
25
35
6
19
13
20
6
40
25
26
29
8
14
44
38
41
20
45

Артикул

Название

Примечание

Количество

1

87434388

RADIATOR

Engine Coolant, See Figure: 02-05

1шт.

2

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

3

87682173

RADIATOR HOSE,57.20 mm ID, 63.50 mm ID x 485.40 mm, SAE 20R4 Class D1

Upper

1шт.

4

87527082

TUBE,2.5" OD

Lower Radiator

1шт.

5

87676660

HOSE,63.50 mm ID, SAE 20R1 Class D1

Connector, Lower Radiator

1шт.

6

L115548

CLAMP,57.15mm - 79.38mm

Hose

6шт.

7

87437994

RADIATOR HOSE,57.20 mm ID, 63.50 mm ID x 125.00 mm, SAE 20R4 CLASS D1

Connector, Lower

1шт.

8

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 9, 10

1шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

11

87303942

TUBE,1" OD

Engine Coolant

1шт.

12

87303947

HOSE,25.40 mm ID x 378.20 mm

Engine Coolant

1шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

14

413537A1

BRACKET

Mounting

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

24шт.

18

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

19

87438034

HOSE,6.40 mm ID x 844.60 mm

Dearation Tank to Engine Vent

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

21

87580873

STEM

45

1шт.

22

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

2шт.

23

A170241

RADIATOR CAP

103 kpa

1шт.

24

87384580

TANK

Dearation

1шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

26

515-25349

CLAMP,1 3/8", Insul, 1/2" Bolt

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

29

87521350

HOSE,6.40 mm ID x 1162.00 mm

Dearation Tank to Radiator

1шт.

30

87438035

HOSE,7.90 mm ID x 2527.30 mm

DearationTank to Coolant Recovery Bottle

1шт.

31

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

1шт.

32

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

87481454

BOTTLE

Coolant Recovery

1шт.

35

238903A1

FILLER CAP

Coolant Recovery Bottle

1шт.

36

87713484

HOSE,0.28" ID x 28.00"

Overflow, Coolant Recovery Bottle

1шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

39

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

40

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

41

87580873

STEM

2шт.

42

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

44

87437846

BRACKET

Mounting, Coolant Recovery Bottle

1шт.

45

363660R1

CLIP

Twist

1шт.

46

432908A1

STUD

Water Bottle

4шт.

Выбрано товаров: 46
