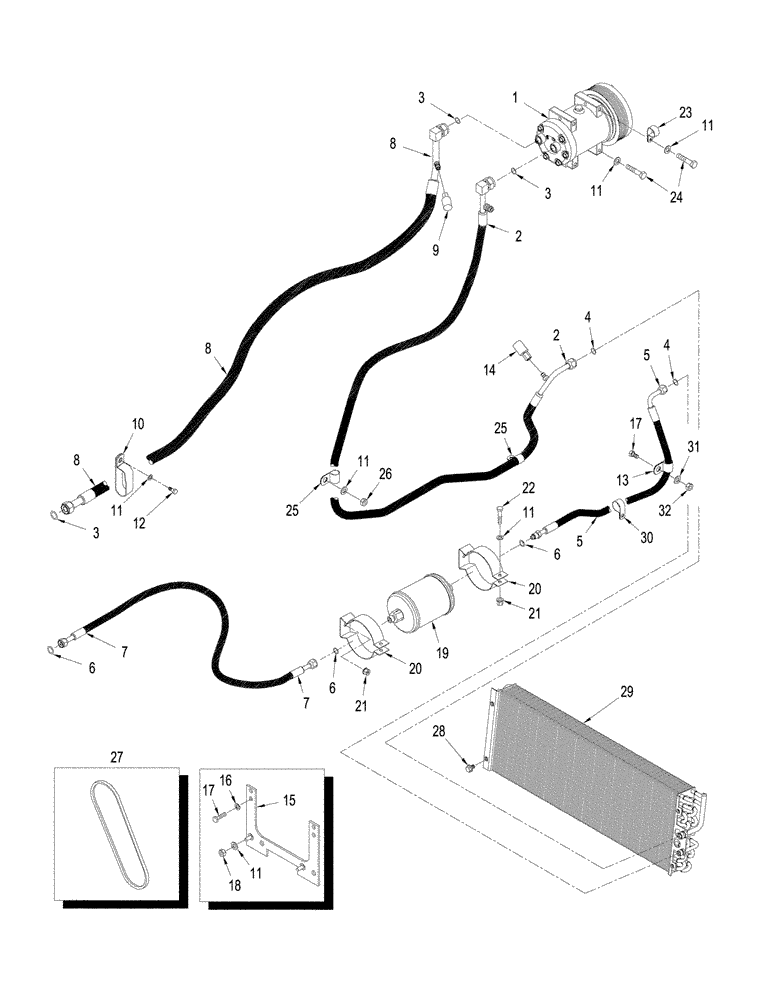

Запчасти Case IH STEIGER 535 (09-50) - AIR CONDITIONING SYSTEM, STEIGER 535 (09) - CHASSIS

1

86993463

AIRCOND. COMPRESSOR

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

87580499

A/C HOSE

2160 mm (85"), Compressor to Condensor, Inc. 3 & 4

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

5

87437756

A/C HOSE

2418 mm (95"), Condesor to Dryer, Inc. 4 & 6

1шт.

6

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

7

87437755

A/C HOSE

2045 mm (80-1/2"), Serial Range: Dryer-Evaporator

1шт.

8

87580501

A/C HOSE

3510 mm (138"), Evaporator to Compressor, Inc. 3 & 9

1шт.

9

86511149

CAP

Low Side Service Port

1шт.

10

R54363

CLAMP

Double

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

17шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

14

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

15

87440265

BRACKET

Mounting, Engine Harness

1шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

295006A1

RECEIVER-DRYER

HFC-134a

1шт.

20

433723A1

CLAMP

Mounting Bracket

2шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

24

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

27

87366407

BELT,3.56 mm W, 6 Ribs

Accessory Drive, A/C & Alternator

1шт.

28

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

29

87434395

CONDENSER

A/C Condensor

1шт.

30

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.
