(09-48) - HEATER - HOSES, STEIGER 535

Запчасти Case IH STEIGER 535 (09-48) - HEATER - HOSES, STEIGER 535 (09) - CHASSIS

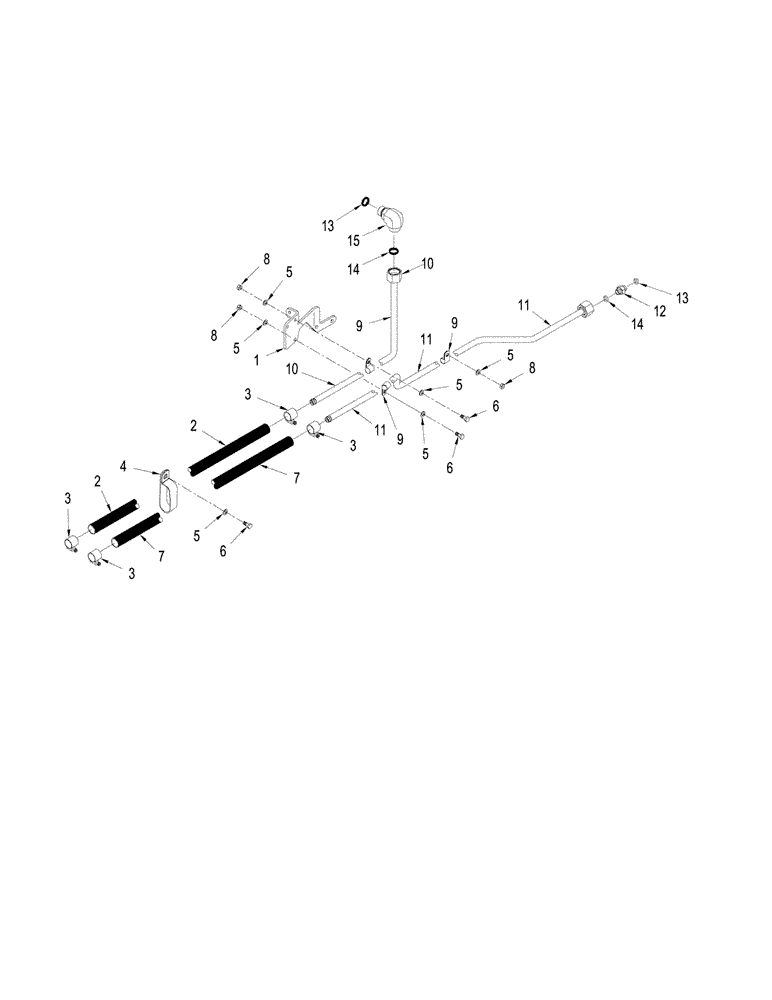

Схема запчастей Case IH STEIGER 535 - (09-48) - HEATER - HOSES, STEIGER 535 (09) - CHASSIS
5
14
5
15
8
14
1
3
9
11
9
6
10
11
5
13
5
5
6
11
9
7
8
4
3
5
3
2
6
8
10
3
12
13
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87335706

BRACKET

Support

1шт.

2

365640A1

HOSE,15.88 mm ID x 1474.00 mm

Supply, Cut from 32-050

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

4

R54363

CLAMP

Double

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

7

365640A1

HOSE,15.88 mm ID x 1474.00 mm

Return, Cut from 32-050

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

10

87389218

HEATER TUBE

Supply, Upper

1шт.

11

87389219

HEATER TUBE

Return, Lower

1шт.

12

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 13, 14

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 13 & 14

1шт.
