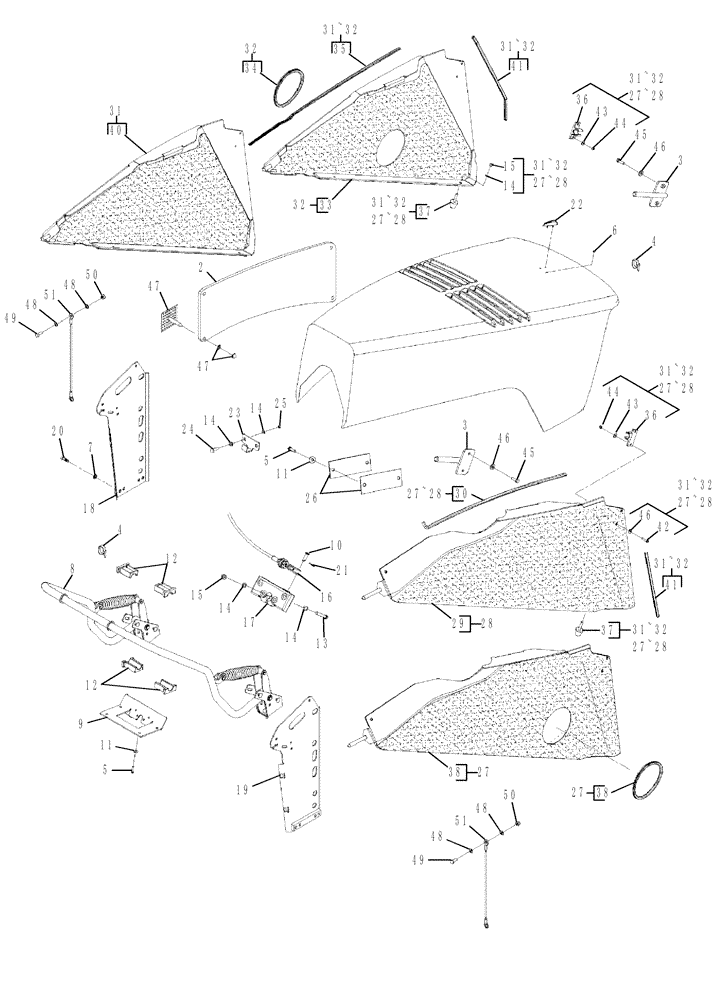

Запчасти Case IH STEIGER 535 (09-42) - HOOD AND SUPPORT, STEIGER 485 / 535 (09) - CHASSIS

1

84177599

HOOD

Does NOT Incl Heat Shield - Item 2

1шт.

2

87445180

FOAM INSULATION

RH

1шт.

2

87308735

FOAM INSULATION

LH

1шт.

3

87312696

MOUNTING PLATE

Debris Screen, with Lock

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

5

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

8шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

8

87532171

SUPPORTING ARM

Lift, See Figure: 09-42

1шт.

9

87367456

BRACKET

Hood Latch

1шт.

10

728-620

CLEVIS PIN,M6 x 20

1шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

12

314842A3

BEARING

4шт.

13

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

15

832-10406

NUT,M6 x 1, Cl 8

8шт.

16

443297A1

CABLE,2363mm L

1шт.

17

87550202

LATCH

Hood, For Striker Bolt and Hood Support See Figure 02-10

1шт.

18

87303387

SUPPORT

Radiator, Left-Hand

1шт.

19

87303386

SUPPORT

Radiator, Right-Hand

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

21

733-1610

COTTER PIN,M1.6 x 10

1шт.

22

87353799

GUIDE

Hood Sight

1шт.

23

87549767

BRACKET, SUPPORTING

Air Cleaner Cover

1шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

26

87307537

PLATE

Hood Guide

4шт.

27

87530703

SCREEN

Assy., Engine Debris, Right-Hand, Incl 14, 15, 30, 36 - 38, 41 - 44, 46

1шт.

STEIGER 485

1шт.

28

87312676

SCREEN

Assy., Engine Debris, Right-Hand, Incl 14, 15, 29, 30, 36, 37 & 41 - 44

1шт.

STEIGER 535

1шт.

29

NSS

NOT SOLD SEPARAT

Engine Debris, Right-Hand

1шт.

STEIGER 535

1шт.

30

87533287

SOFT TRIM

Right-Hand, 105 mm (4"), Cut From: 87533285

1шт.

31

87530698

SCREEN

Assy., Engine Debris, Left-Hand, Incl 14, 15, 35 - 37, 39, 40, 42 - 44 & 46

1шт.

STEIGER 485

1шт.

32

87312675

SCREEN

Assy., Engine Debris, Left-Hand, Incl 14, 15, 33 - 37, & 42 - 44

1шт.

STEIGER 535

1шт.

33

NSS

NOT SOLD SEPARAT

Engine Debris, Left-Hand

1шт.

STEIGER 535

1шт.

34

87422383

RUBBER SEAL

Dipstick Hole, 476 mm (18-47/64 in), Cut From: 87371080

1шт.

STEIGER 535

1шт.

35

87533287

SOFT TRIM

Left-Hand, 105 mm (4"), Cut From : 87533285

1шт.

35

84144126

SEAL

Left-Hand

1шт.

STEIGER 485

1шт.

36

87312706

CLIP

1шт.

37

87315570

RUBBER MOUNTING

Spacer

2шт.

38

NSS

NOT SOLD SEPARAT

Screen, Engine Debris, Right-Hand

1шт.

STEIGER 485

1шт.

39

NSS

NOT SOLD SEPARAT

Trim, Dipstick Hole, Right-Hand

1шт.

STEIGER 485

1шт.

40

NSS

NOT SOLD SEPARAT

Screen, Engine Debris, Left-Hand

1шт.

STEIGER 485

1шт.

41

84144126

SEAL

Foam, Debris

1шт.

42

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

43

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

44

832-10405

NUT,M5 x .8, Cl 8

2шт.

45

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

46

895-25005

WASHER,M5 x 15 x 1.6

2шт.

47

399007A1

ANCHOR

Insulation Mounting Kit

1шт.

48

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

49

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

50

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

51

87422371

CABLE

2шт.
