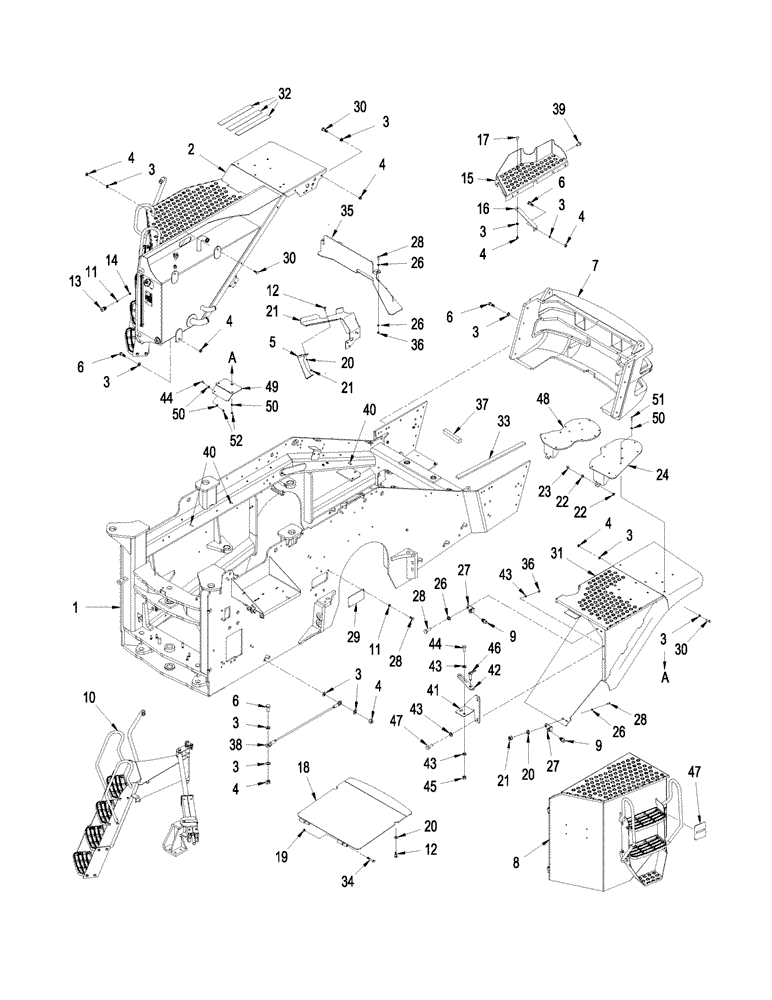

Запчасти Case IH STEIGER 535 (09-34) - FRONT FRAME, QUADTRAC TRACTOR, STEIGER 535 (09) - CHASSIS

1

446539A1

FRAME ASSY

Front

1шт.

2

NSS

NOT SOLD SEPARAT

Tank Assy, See Figure: 08-20

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

55шт.

4

829-1412

NUT,M12, Cl 10.9

25шт.

5

87528744

SUPPORT

Debris Sheild

1шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

18шт.

7

REF

INSTRUCTION

Bumper, Front, See Figure: 09-39

1шт.

8

REF

INSTRUCTION

Door Assy, Battery, See Figure: 09-35

1шт.

9

363226A1

BUMPER

Rubber

1шт.

10

336017A1

STEP

Pivot, Left-Hand, See Figure: 09-36

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

13

N7673

BUMPER

1шт.

14

425-105

NUT,5/16"-18, G5

1шт.

15

87522126

STEP

Frame

1шт.

16

87522173

GUSSET

Step

1шт.

17

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

1шт.

18

87309871

DOOR COVER

Access

1шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

21

87524659

SHIELD

Debris

1шт.

Used with 10" Muffler Application

1шт.

22

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

2шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

24

87442097

MOUNTING PLATE

Muffler / Air Intake

1шт.

Used with 10" Muffler Application

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

27

86992264

BRACKET

Door Stop

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

29

87443717

COVER

Access

1шт.

30

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

18шт.

31

87641155

FRONT FENDER

RH, Serial Range: -Z8F109701

1шт.

31

87723361

4WD FRONT FENDER

RH, Start Serial: Z8F109701

1шт.

32

1-6835

ADHESIVE STRIP

406 mm (16"), Anti-Skid

4шт.

33

328197A1

SEAL

3шт.

34

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

35

87346410

SHIELD

Trash

1шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

37

396412A1

RUBBER STRIP

2шт.

38

87372424

CABLE RETAINER

Battery Door Retaining

1шт.

39

384163A1

PLASTIC PLUG

Not Illustrated

1шт.

40

426285A1

STUD

Threaded

45шт.

41

87641196

BRACKET, SUPPORTING

Door Lock

1шт.

42

87591014

ADJUSTING PLATE

Door Lock

1шт.

43

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

44

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

46

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

47

87613511

DECAL

Protective, Lock Cover

1шт.

48

87618507

PLATE

Mounting, Muffler / Air Intake, Serial Range: -Z8F109701

1шт.

Used with 12" Muffler Application

1шт.

49

84155412

GUSSET

Support, Fender

1шт.

50

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

51

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

52

832-46410

NUT,M10 x 1.5, Cl 8

3шт.
