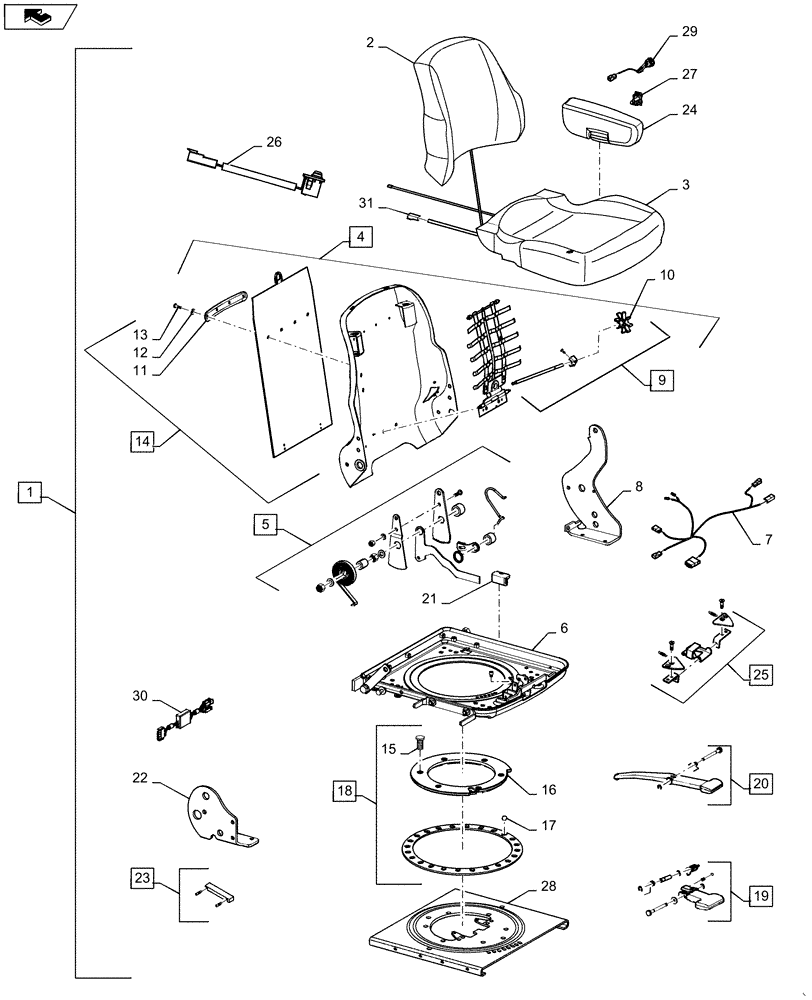

Запчасти Case IH STEIGER 535 (09-25) - SEAT - CUSHION ASSEMBLY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
87553808
SEAT ASSY.
Cloth, without Heat, Air 2000, Incl 2, 3, 4, 6, 21, 26, 28, 34, Serial Range: -Z8F111501
1шт.
1
87752523
SEAT ASSY.
Cloth, without Heat, Air 2000, Incl 2, 3, 4, 6, 21, 26, 28, 34, Start Serial: Z8F111501
1шт.
1
87553810
SEAT ASSY.
Cloth, Heated , Serial Range: -Z7F108366
1шт.
1
87643371
SEAT ASSY.
Cloth, Air 2000, Heated , Serial Range: Z7F108366-Z8F111501
1шт.
1
87752526
SEAT ASSY.
Cloth, Air 2000, Heated , Start Serial: Z8F111501
1шт.
1
87553440
SEAT ASSY.
Cloth, Heated, Positive Response Suspension , Serial Range: -Z7F108318
1шт.
1
87643377
SEAT ASSY.
Cloth, Air 2000, Heated, Positive Response Suspension , Serial Range: Z7F108318-Z8F111501
1шт.
1
87752528
SEAT ASSY.
Cloth, Air 2000, Heated, Positive Response Suspension , Start Serial: Z8F111501
1шт.
1
87553442
SEAT ASSY.
Leather, Heated
1шт.
2
373476A1
CUSHION
Backrest, Cloth, without Heat
1шт.
2
87395385
CUSHION
Backrest, Cloth, Heated, Serial Range: -Z7F108318
1шт.
2
87607891
CUSHION
Backrest, Cloth, Heated, Start Serial: Z7F108318
1шт.
2
87758231
CUSHION
Backrest, Cloth, 2 Position Heat, Wheat, Start Serial: Z8F111501
1шт.
2
87397614
SEAT CUSHION
Leather, Heated
1шт.
3
87758228
SEAT CUSHION
Cloth, without Heat
1шт.
3
87395384
SEAT CUSHION
Cloth, Heated, Serial Range: -Z7F108318
1шт.
3
87607890
SEAT CUSHION
Cloth, Heated, Start Serial: Z7F108318
1шт.
3
87758230
SEAT CUSHION
Cloth, 2 Position Heat, Wheat, Start Serial: Z8F111501
1шт.
3
87397613
CUSHION
Leather, Heated, Flat With 4 Terminal Plug
1шт.
3
87749241
SEAT CUSHION
Leather, Heated, With Square 4 Pin Connector
1шт.
4
86994155
ASSEMBLY
Seat Back, with Lumber & Pouch, Incl 9 - 11
1шт.
5
86994165
SEAT ACCESSORY
Recliner Control
1шт.
6
NSS
NOT SOLD SEPARAT
Lower, Seat Pan
1шт.
7
87347944
SERVICE KIT
Harness, Suspension
1шт.
8
NSS
NOT SOLD SEPARAT
BRACKET, Incl in 14
1шт.
9
87308130
SEAT BACK ADJUST DEV
Lumbar, Incl 10
1шт.
10
87037462
SEAT BACK ADJUST DEV
Lumbar Knob
1шт.
11
86994172
SERVICE KIT
Manual Holder
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER, Incl in 14
4шт.
13
NSS
NOT SOLD SEPARAT
RIVET, Incl in 14
4шт.
14
86994172
SERVICE KIT
Operators Manual, Cloth, Incl 8, 11, 12 - 13
1шт.
15
NSS
NOT SOLD SEPARAT
BOLT, Incl in 18
6шт.
16
NSS
NOT SOLD SEPARAT
RETAINER, Incl in 18
1шт.
17
NSS
NOT SOLD SEPARAT
BALL, Incl in18
24шт.
18
87347936
SERVICE KIT
Swivel
1шт.
19
87347942
SERVICE KIT
Swivel Control
1шт.
20
87347941
SERVICE KIT
Fore / Aft Slide Control
1шт.
21
87416475
KNOB
Recline Control
1шт.
22
84173858
BRACKET
Armrest Mount
1шт.
23
302016A1
PACKAGE,SERVICE
Slide Pucks
1шт.
24
87347939
SERVICE KIT
Armrest, Left-Hand, Cloth, without Heat
1шт.
24
87397615
ARMREST
Cloth, LH, Heated, Serial Range: -Z7F108366
1шт.
24
86994250
ARMREST
Cloth, LH, Heated, Start Serial: Z7F108366
1шт.
24
87620257
ARMREST
Cloth, LH, Heated, Positive Response Seat
1шт.
24
87620258
ARMREST
Left-Hand, Leather, Heated (3 Holes without Switches)
1шт.
25
87347934
LATCH
Seat Slide
1шт.
26
86400227
SWITCH,Two Connectors, 90° Terminals
Operator Pressure
1шт.
27
87347940
ROCKER SWITCH
Height Control Switch, with 90 Degree Elbow
1шт.
28
87347956
SERVICE KIT
Lower Swivel
1шт.
29
87395388
SWITCH
Heater, 3 Position, Round Rocker, Serial Range: -Z7F108318
1шт.
31
NSS
NOT SOLD SEPARAT
HARNESS, Incl in 3
1шт.
32
87611650
SWITCH
Operator Ride Control, Positive Response Suspension, Not Illustrated
1шт.
33
87626130
HARNESS
Operator Ride Control, Positive Response Suspension, from Switch to Dampener Control Box, Not Illustrated
1шт.
34
830-1110
NUT,Weld, M10
Not Illustrated
1шт.
35
87395390
HARNESS
Heater, Center Section, Not Illustrated
1шт.
36
87347958
SERVICE KIT
Ride Control, Positive Response Seat, Incl 32, 33, Not Illustrated
1шт.
37
561-707
HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9
Not Illustrated
1шт.
38
87590287
SUPPORT
Seat Bracket, Not Illustrated
1шт.
Выбрано товаров: 60
