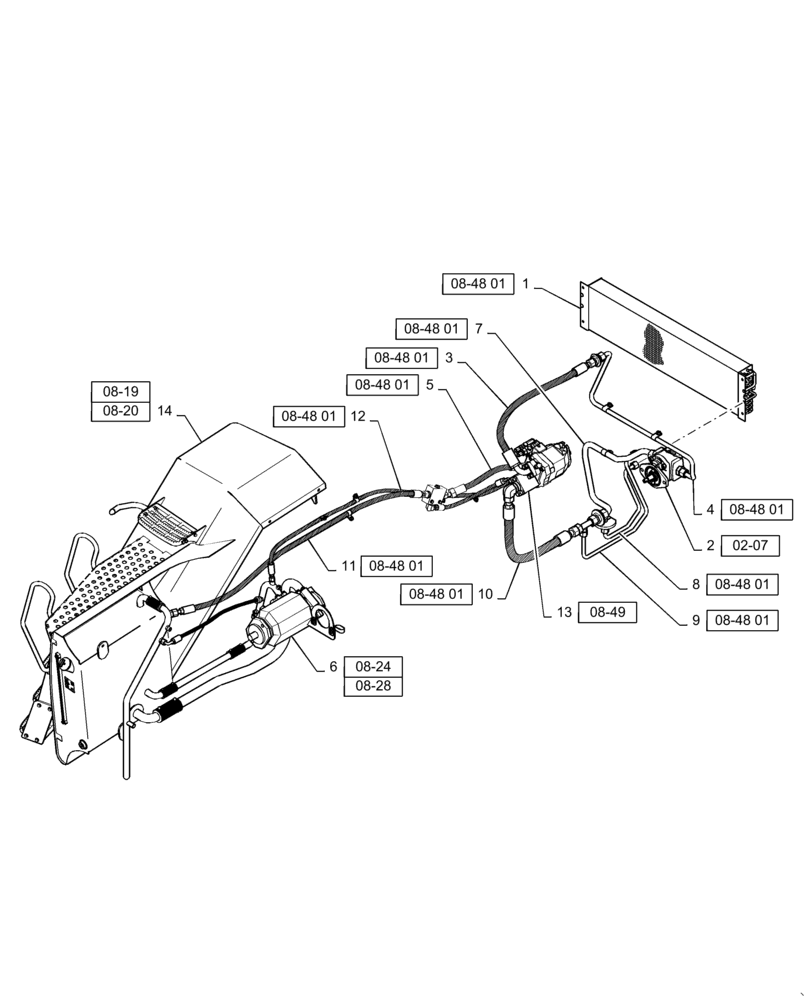

Запчасти Case IH STEIGER 535 (01A-22) - HYDRAULICS - HYDRAULIC FAN DRIVE CIRCUITRY, STEIGER 535 (00) - PICTORIAL INDEX

1

Cooler, Hydraulic Oil, See Figure 08-48 (01)

1шт.

2

Motor, Hydraulic Fan, See Figure 02-07

1шт.

3

Hose, Pressure, Fan Motor Supply, See Figure 08-48 (01)

1шт.

4

Tube, Pressure, Fan Motor Supply, See Figure 08-48 (01)

1шт.

5

Hose, Case Drain, See Figure 08-48 (01)

1шт.

6

Pump, Standard Hydraulics, See figure 08-24

1шт.

6

Pump, High Output Hydraulics, See Figure 08-28

1шт.

7

Tube, Fan Motor Return To Tank, See Figure 08-48 (01)

1шт.

8

Hose, Supply, Fan Motor from Oil Cooler, See Figure 08-48 (01)

1шт.

9

Hose, Oil Cooler Return, See Figure 08-48 (01)

1шт.

10

Hose, Fan Motor Return to Pump, See Figure 08-48 (01)

1шт.

11

Hose, Pump Return to Tank, See Figure 08-48 (01)

1шт.

12

Hose, Supply, See Figure 08-48 (01)

1шт.

13

Pump, Hydraulic Fan Drive, See Figure 08-49

1шт.

14

Tank, Hydraulic, Wheel Tractor, See Figure 08-19

1шт.

14

Tank, Hydraulic, QUADTRAC Tractor, See Figure 08-20

1шт.
