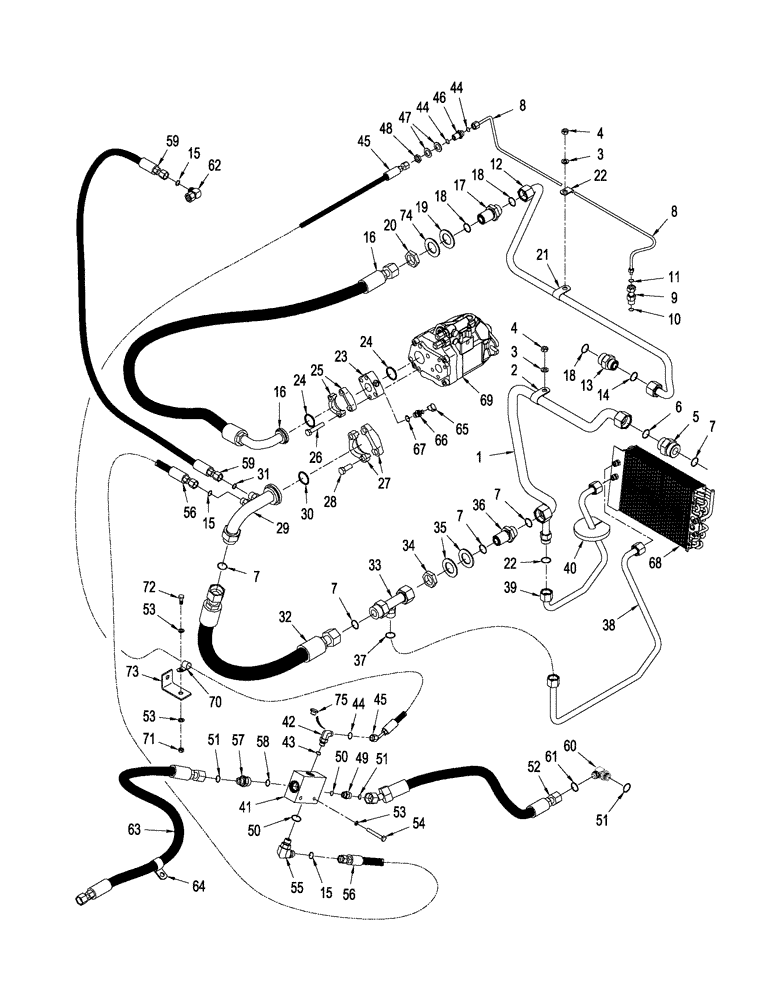

Запчасти Case IH STEIGER 535 (08-48) - HYDRAULICS - FAN DRIVE CIRCUITRY, STEIGER 535, BSN Z8F112021 (08) - HYDRAULICS

1

87387451

HYD TUBE,25.40 mm OD x 433, 407 mm L

Fan Return

1шт.

2

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 6 & 7

1шт.

6

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

8

87387455

HYD TUBE,4.57 mm ID x 6.35 mm OD x 499, 187 mm L

Case Drain, Serial Range: -Z8F110157

1шт.

9

87530057

FITTING

Inc. 10 & 11, Serial Range: -Z8F110157

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

87387453

HYD TUBE,14.23 mm ID x 19.05 mm OD x 588, 463 mm L

Pressure Supply

1шт.

13

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 14 & 18

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

16

87608034

HOSE ASSY.

1661mm (65.39"")

1шт.

16

87744634

HOSE ASSY.

876 mm (34-1/2")

1шт.

17

701-140

UNION,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Inc. 18

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

431806A1

WASHER

1шт.

20

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

21

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

22

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

, Serial Range: -Z8F110157

2шт.

23

87440383

VALVE BLOCK

1", Flange Port

1шт.

24

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

25

A12306

FLANGE

Clamp, Half-Split

2шт.

26

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

27

A14157

FLANGE

Clamp, Split, 1,50"

1шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

29

87440350

HYD TUBE,31.75 mm OD x 150, 100 mm L

Fan Pump

1шт.

30

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

87440035

HOSE ASSY.

889 mm (35")

1шт.

32

87610030

HOSE ASSY.

889 mm (35")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

33

433891A1

TUBE

1шт.

34

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

35

431802A1

WASHER,40mm ID x 80mm OD x 3.8mm Thk

2шт.

36

434004A1

VALVE, CHECK

Blk hd, Inc. 7

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

87305670

HYD TUBE

Oil Cooler, Return

1шт.

39

87344569

HYD TUBE

Oil Cooler, Supply

1шт.

40

87444087

SEAL

Shroud

1шт.

41

87408680

BLOCK

Manifold

1шт.

42

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc. 43 & 44, Serial Range: -Z8F110157

1шт.

43

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

44

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

45

87440034

HOSE ASSY.

820 mm (32-1/4"), Serial Range: -Z8F110157

1шт.

46

701-108

UNION,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Inc. 44, Serial Range: -Z8F110157

1шт.

47

87307708

WASHER

, Serial Range: -Z8F110157

2шт.

48

701-1254

BHD LOCK NUT,9/16" - 18

, Serial Range: -Z8F110157

1шт.

49

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 50

1шт.

50

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

51

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

52

87372135

HOSE

457 mm (18")

1шт.

52

87744630

HOSE ASSY.

457 mm (18")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

54

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

55

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 15 & 50

1шт.

56

87437799

HOSE ASSY.

571 mm (22-1/2")

1шт.

56

87610028

HOSE ASSY.

571 mm (22-1/2")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

57

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Inc. 51 & 58

1шт.

58

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

59

87344506

HOSE

2235 mm (88")

1шт.

59

87610031

HOSE ASSY.

2235 mm (88")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

60

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 7 & 61

1шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

62

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 15

1шт.

63

87372142

HOSE

1714 mm (67-1/2")

1шт.

63

87744632

HOSE ASSY.

1714 mm (67-1/2")

1шт.

64

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

Arctic QUADTRAC Tractor Application

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 66 - 67

1шт.

65

H434163

DUST CAP

1шт.

66

NSS

NOT SOLD SEPARAT

Fitting, Inc. 67

1шт.

67

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

68

87434395

CONDENSER

Hydraulic Fan

1шт.

69

87434402

HYDRAULIC PUMP,45 CC

Hydraulic Fan, Steiger 535, See Figure: 08-49

1шт.

69

87434402R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

69

87434402C

CORE-HYDRAULIC PUMP

Return number

1шт.

69

87658055

PUMP

Hydraulic Fan, CCW Variable Displacement, Steiger 485, See Figure: 08-49

1шт.

69

87658055R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

69

87658055C

CORE-HYDRAULIC PUMP

Return Number

1шт.

70

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

, Serial Range: -Z8F110157

1шт.

71

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

72

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

73

369960A1

BRACKET

Support, Hose Clamp, Serial Range: -Z8F110157

1шт.

74

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

1шт.

75

220064A1

PLUG,M14 x 1.5, ORB

Inc. 43

1шт.
