Запчасти Case IH STEIGER 535 (06-75) - 500 SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS (06) - POWER TRAIN

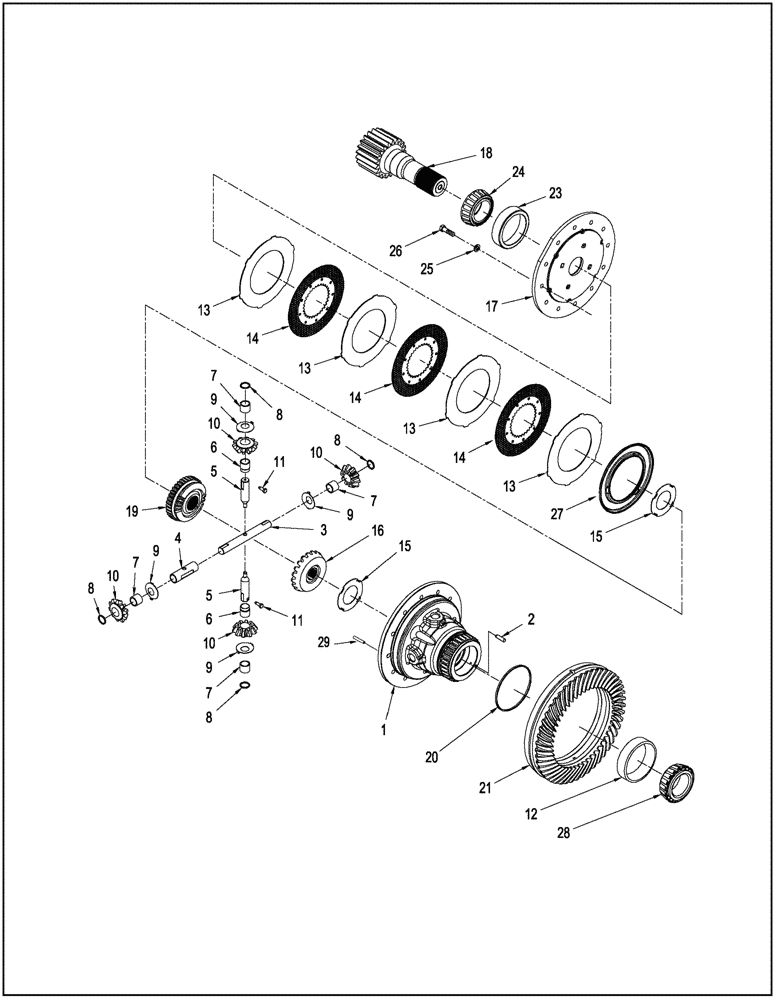

Схема запчастей Case IH STEIGER 535 - (06-75) - 500 SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

86985669

REAR AXLE

HD W/Diff Lock

1шт.

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

87423305

FRONT AXLE

QT W/Diff Lock

1шт.

87423305R

REMAN-AXLE

QT W/Diff Lock

1шт.

87423305C

CORE-FRT AXLE w/DL

Return Number

1шт.

87423306

REAR AXLE

QT W/Diff Lock

1шт.

87423306R

REMAN-REAR AXLE 4WD

QT W/Diff Lock

1шт.

87423306C

CORE-REAR AXLE W/DI

Return Number

1шт.

87471363

DIFFERENTIAL ASSY

with Diff Lock, Inc. 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Differential

1шт.

2

87520606

PLUG

10mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator

4шт.

14

120679C1

PLATE

Friction

3шт.

15

87629650

THRUST WASHER

2шт.

16

1259633C3

GEAR

Bevel, 20T

1шт.

17

87304964

COVER

Housing Cover

1шт.

18

279844A2

SHAFT,271mm L

Sun Gear, Short

2шт.

QUADTRAC Tractor

1шт.

18

279719A2

SUN GEAR

Short

1шт.

STX Wheel Tractor

1шт.

19

1259634C3

PINION

Lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

87522606

GEAR SET

Pinion Shaft and Gears, Front Axle, Inc. 21, See Figure 06-70

1шт.

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle, Not Illustrated, Inc. 22, See Figure 06-71

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, Drive, Front Axle

1шт.

22

NSS

NOT SOLD SEPARAT

Gear, Drive, Rear Axle, Not Illustrated

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

27

1997422C1

PISTON

Brake

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

29

137023A1

DOWEL

10mm OD x 60mm L

6шт.

Выбрано товаров: 47
