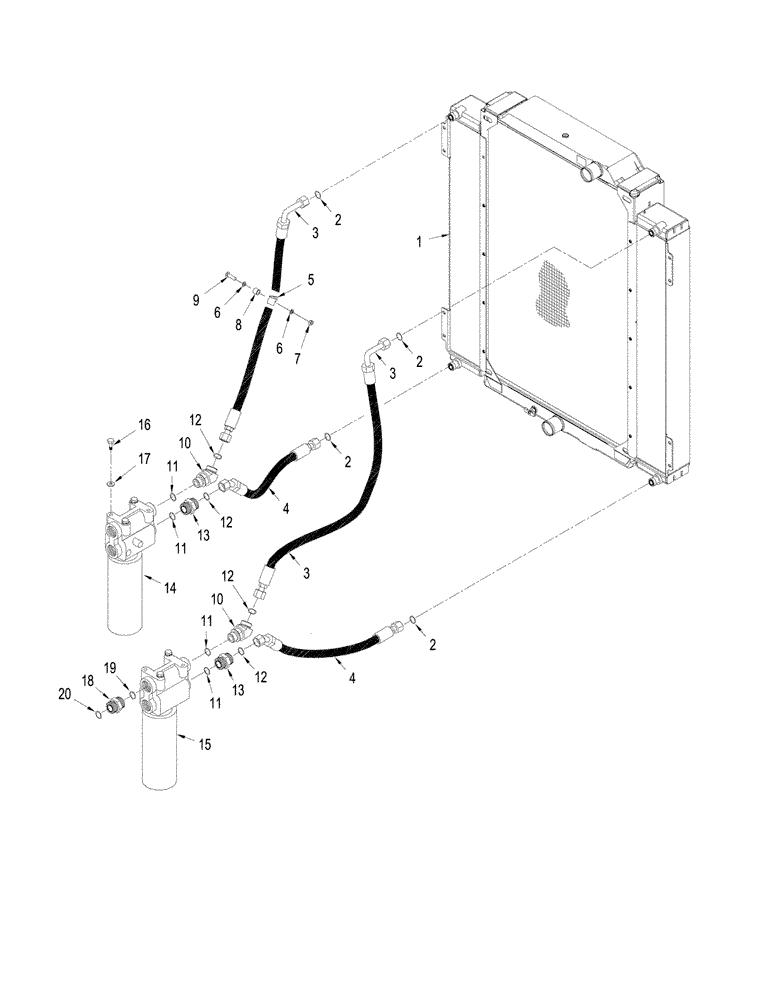

Запчасти Case IH STEIGER 530 (08-02) - HYDRAULIC OIL COOLER, STX & STEIGER 480 / 530 (08) - HYDRAULICS

1

87434388

RADIATOR

Oil, See Figure: 02-04

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

3

87440661

HOSE ASSY.

1181mm (46-1/2")

2шт.

3

87610041

HOSE ASSY.

1181mm (46-1/2")

2шт.

Arctic QUADTRAC Tractor Application

1шт.

4

87440659

HOSE ASSY.

685 mm (27")

2шт.

4

87610040

HOSE ASSY.

685 mm (27")

2шт.

Arctic QUADTRAC Tractor Application

1шт.

5

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

87307825

SPACER

2шт.

9

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

10

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 11 & 12

2шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 11, 12

2шт.

14

REF

INSTRUCTION

Filter, Transmission, LH, See Figure: 08-04

1шт.

15

REF

INSTRUCTION

Filter, Axle Lubrication, RH, See Figure: 08-04

1шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

18

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 19 & 20

2шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
