(05.100.03[01]) - FILTERS, 530

Запчасти Case IH STEIGER 530 (05.100.03[01]) - FILTERS, 530 (00) - PICTORIAL INDEX

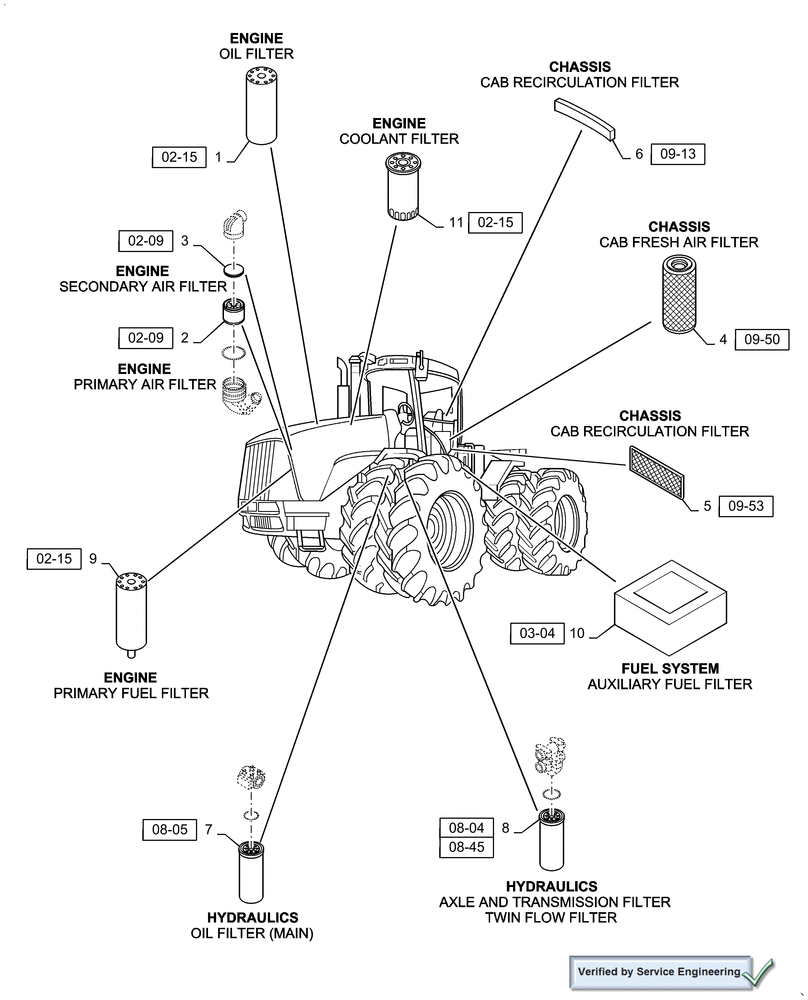

Схема запчастей Case IH STEIGER 530 - (05.100.03[01]) - FILTERS, 530 (00) - PICTORIAL INDEX
09-53
02-15
6
02-15
03-04
09-13
11
5
7
02-09
1
8
9
08-45
4
02-15
10
02-09
08-04
08-05
3
2
09-50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

324617A1

ENGINE OIL FILTER

Spin-On

1шт.

2

87727665

AIR FILTER

Primary

1шт.

3

87443714

AIR FILTER

Secondary

1шт.

4

259288A1

CAB FILTER

Fresh Air

1шт.

5

87409377

FILTER

Cab, Recirculation

1шт.

6

87409368

CAB FILTER

Recirculation

1шт.

7

87404986

HYDRAULIC OIL FILTER

Main

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

High Flow

1шт.

9

87366406

FUEL FILTER

Engine Mounted

1шт.

10

87409379

FUEL FILTER,30 Micron

Aux Element

1шт.

11

324618A1

FILTER

Engine Coolant

1шт.

Выбрано товаров: 12
