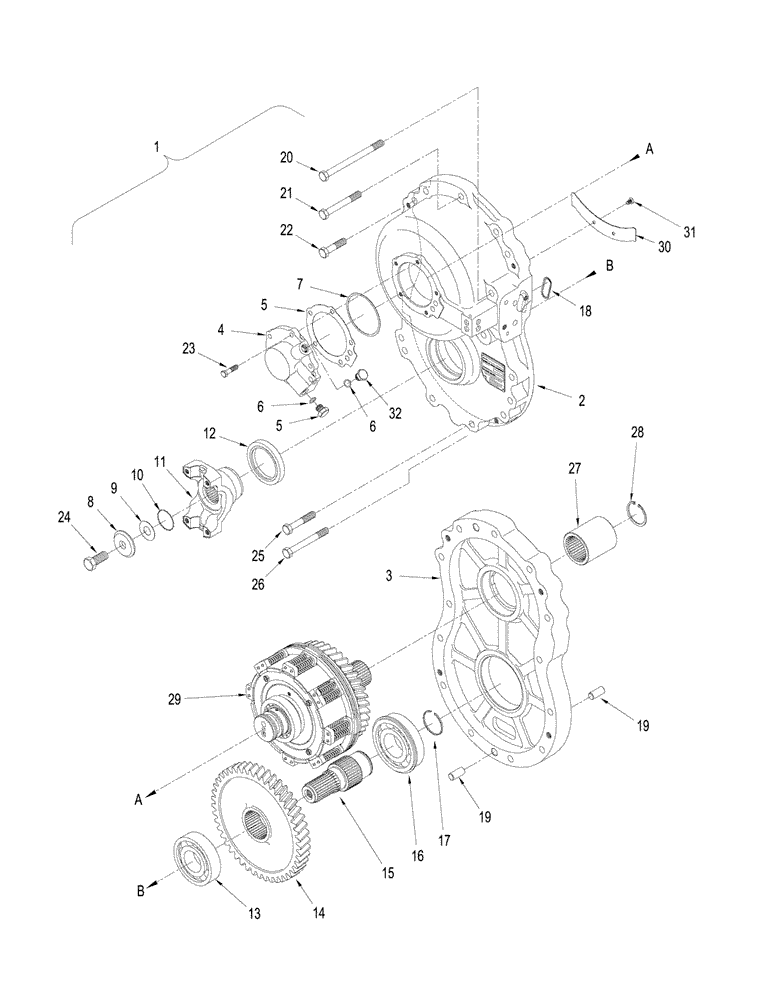

Запчасти Case IH STEIGER 530 (06-27) - POWER TAKEOFF - CLUTCH ASSEMBLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
87601931
PTO CLUTCH
Inc. 2 - 32
1шт.
87601931R
REMAN-CLUTCH ASSY
STEIGER 380, STEIGER 430, STEIGER 480, STEIGER 530 all (ASN Z6F105001), STX380, STX430, STX480, STX530 all (BTW Z6F100023 - Z6F105001)
1шт.
87601931C
CORE-CLUTCH ASSEMBLY
Return Number
1шт.
2
375550A1
HOUSING
Front Cover
1шт.
3
87601932
HOUSING
Rear Cover
1шт.
4
375552A1
HOUSING
1шт.
5
375553A1
GASKET
1шт.
6
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
7
S9910S00F
SHIM,0.1mm Thk
(.004")
1шт.
7
S9920S00F
SHIM,0.3mm Thk
(.012")
1шт.
7
S9930S00F
SHIM,0.5mm Thk
(.020")
1шт.
7
S9940S00F
SHIM,0.7mm Thk
(.027")
1шт.
8
S8860S00F
THRUST WASHER
1шт.
9
S9950S00F
SHIM,0.1mm Thk
(0.10 mm)
1шт.
9
S9960S00F
SHIM,0.31mm Thk
(0.30 mm)
1шт.
9
S9970S00F
SHIM,0.51mm Thk
(0.51 mm)
1шт.
9
S9980S00F
SHIM,0.71mm Thk
(0.7 mm)
1шт.
10
375512A1
O-RING
1шт.
11
398447A1
YOKE
UNIVERSAL JOINT YOKE
1шт.
12
S8820S00F
OIL SEAL
1шт.
13
ST293
BALL BEARING,45mm ID x 100mm OD x 25mm W
1шт.
14
375554A1
GEAR
Driven
1шт.
15
375555A1
SHAFT
Output
1шт.
16
375559A1
BEARING, BALL
1шт.
17
375560A1
RING, SNAP
RING SNAP
1шт.
18
375556A1
GASKET
1шт.
19
427530A1
DOWEL,14mm OD x 31mm L
4шт.
20
SM8124208
BOLT
2шт.
21
514-846
BOLT,Hex, M12 x 1.25 x 90mm, Cl 8.8
4шт.
22
514-855
BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8
2шт.
23
614-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
5шт.
24
514-1021
BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9
1шт.
25
514-847
BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8
2шт.
26
514-854
BOLT,Hex, M12 x 1.25 x 100mm, Cl 8.8, Full Thd
7шт.
27
428660A1
SLEEVE
1шт.
Used on Power Shift Models
1шт.
28
800-2147
SNAP RING,M47, Int
1шт.
Used on Power Shift Models
1шт.
29
NSS
NOT SOLD SEPARAT
Input Shaft, See Figure: 06-28
1шт.
30
376972A1
TROUGH
1шт.
31
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
2шт.
32
86611704
PLUG,Hex, M14 x 1.5 ORB
Inc. 6
9шт.
Выбрано товаров: 42
