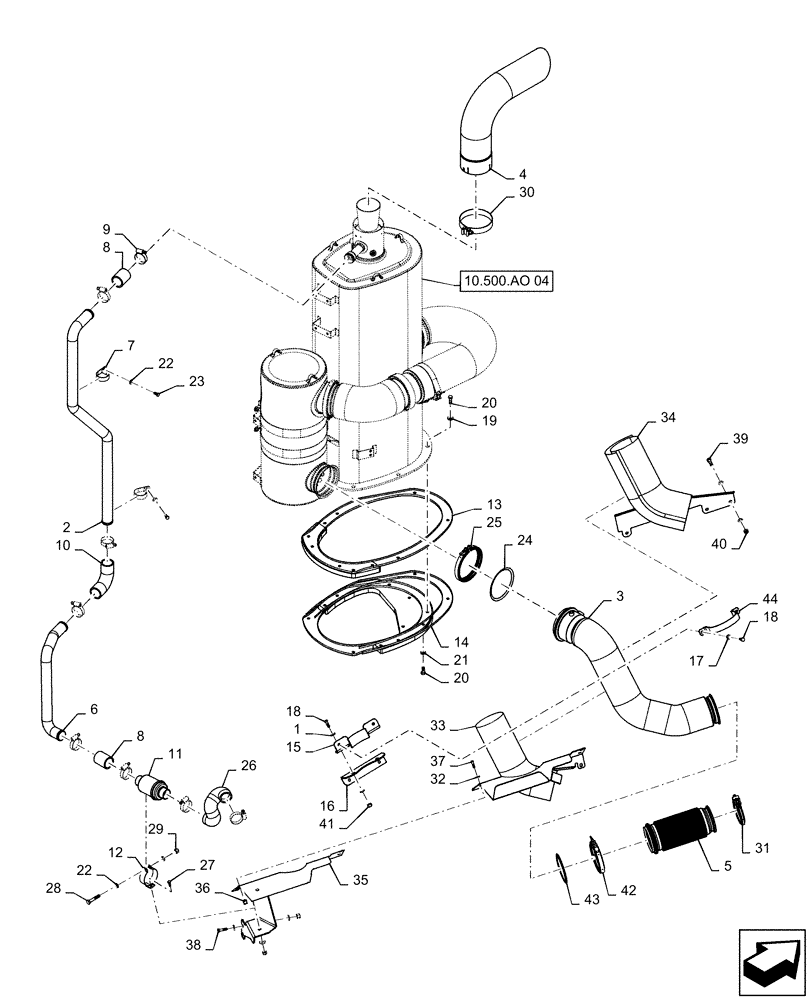

Запчасти Case IH STEIGER 500 (10.500.AO[03]) - EXHAUST SYSTEM, STEIGER 500 (10) - ENGINE

1

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

2

47566175

TUBE

Aspirator, SCR

1шт.

3

47565309

TUBE

Exhaust

1шт.

4

47565319

ELBOW

Exhaust Outlet Stack

1шт.

5

47566982

TUBE

Flex

1шт.

6

47555992

TUBE

Aspirator, Check Valve To SCR

1шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

8

84583310

HOSE

Check Valve

2шт.

9

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

8шт.

10

84583312

HOSE

Aspirator

1шт.

11

87443913

VALVE

Check

1шт.

12

87300581

CLAMP

Check Valve

1шт.

13

84587624

SUPPORT

SCR Base, Rear

1шт.

14

84587625

SUPPORT

SCR Base, Front

1шт.

15

47603529

BRACKET

Exhaust Tube Cradle

1шт.

16

47603526

BRACKET

Exhaust Tube

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

20

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

16шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

24

47368257

GASKET

6" Exhaust

1шт.

25

47368242

CLAMP

6" Exhaust

1шт.

26

47417241

HOSE

Aspirator

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

28

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

30

87430634

CLAMP,159.5mm ID

Exhaust Outlet Stack

1шт.

31

47423212

CLAMP

Exhaust Flap

1шт.

32

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

33

47418774

SHIELD

Debris, LH

1шт.

34

47418798

SHIELD

Debris, LH

1шт.

35

47420131

SUPPORT

Check Valve

1шт.

36

379540A1

INSERT,M8

Threaded, M8

2шт.

37

86512788

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 30mm, Cl 10.9

5шт.

38

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

39

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

40

829-1412

NUT,M12, Cl 10.9

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

42

47368240

CLAMP

5" Exhaust

1шт.

43

47368254

GASKET,133.8mm ID x 154mm OD x 4.6mm Thk

5" Exhaust

1шт.

44

47369167

STRAP

Exhaust Tube

1шт.
