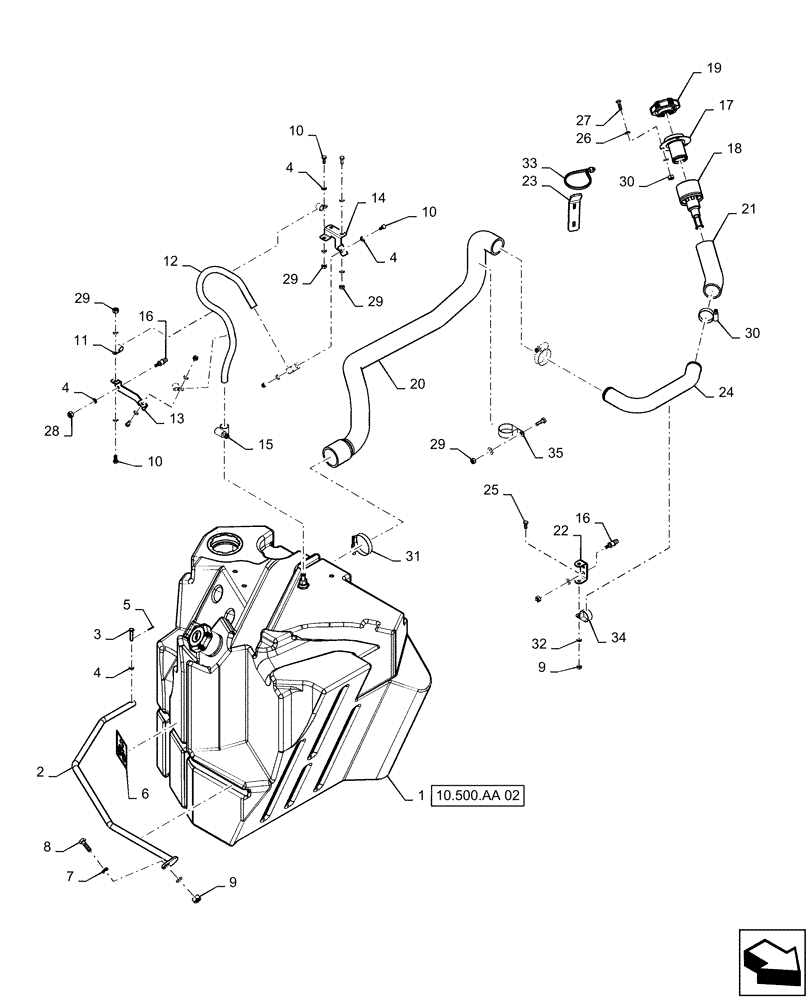

Запчасти Case IH STEIGER 500 (10.500.AA[01]) - DEF/ADBLUE TANK LINES, BSN ZEF303000 (10) - ENGINE

1

47500725

EXHAUST FLUID TANK

62 Gallons

1шт.

2

84295126

BRACKET, SUPPORTING

DEF Tank

1шт.

3

728-840

CLEVIS PIN,M8 x 40

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

5

733-1616

COTTER PIN,M1.6 x 16

4шт.

6

84284896

DECAL,DEF TANK identification label

DEF

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

12

47397693

HOSE

DEF Tank Vent

1шт.

13

47398268

BRACKET

DEF Tank Breather

1шт.

14

47357924

BRACKET

DEF Tank Breather

1шт.

15

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

16

426285A1

STUD

Threaded, M8

4шт.

17

84315307

FILLER

DEF

1шт.

18

87483158

NECK FILLER

DEF

1шт.

19

84206552

FILLER CAP,Male

DEF Tank

1шт.

20

84563334

HOSE

DEF FIll

1шт.

21

47507801

HOSE

DEF Tank Fill

1шт.

22

84425052

BRACKET

DEF Fill Support

1шт.

23

84425077

BRACKET

DEF LH Fill Lock

1шт.

24

84425053

TUBE

DEF Tank Fill

1шт.

25

84246766

HEX SOC SCREW,M4 x 12mm, SST

M4 x 12mm

4шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

27

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

28

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

11шт.

30

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

3шт.

31

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

32

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

1шт.

34

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

35

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

3шт.
