Запчасти Case IH STEIGER 500 (90.124.AE) - SEAT MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

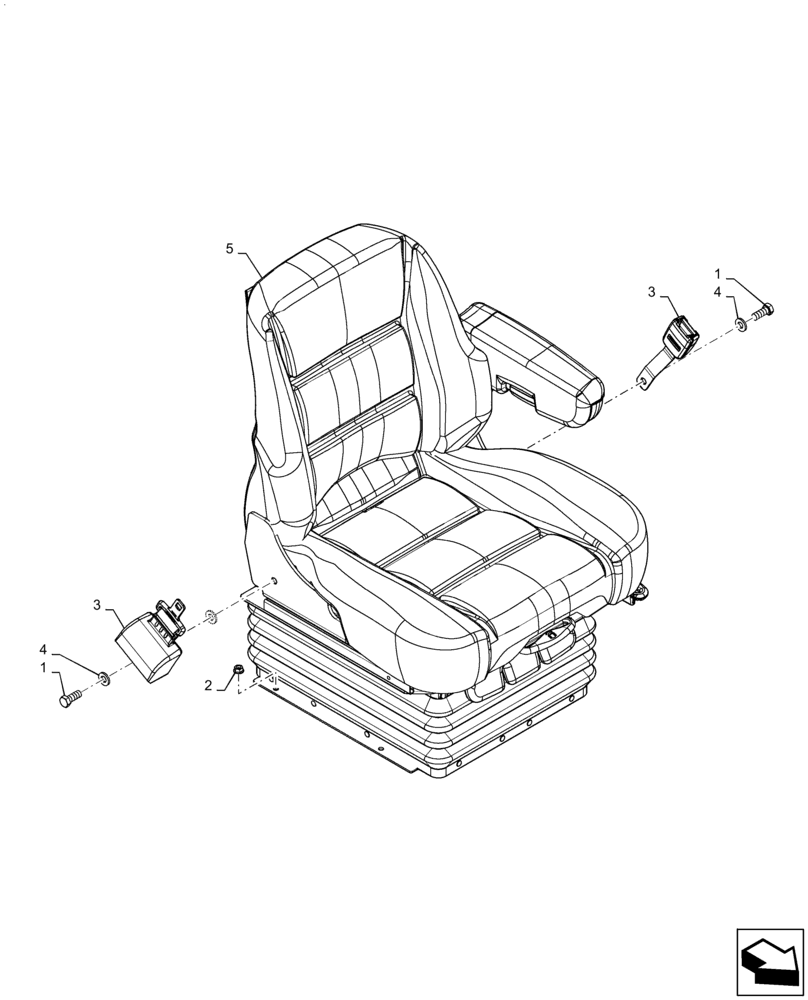

Схема запчастей Case IH STEIGER 500 - (90.124.AE) - SEAT MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
1
5
3
4
4

Артикул

Название

Примечание

Количество

1

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

2

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

3

84257916

SEAT BELT,48mm W x 1447.8mm L

Operator, 57" Max Extension

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

47581187

DRIVER SEAT

Complete, CIH, Cloth, Wheat, VAR - 391606, 420001

1шт.

5

47581188

DRIVER SEAT

Complete, CIH, Cloth, Wheat, Heated, VAR - 420002, 449057

1шт.

5

47581189

DRIVER SEAT

Complete, CIH, Cloth, Wheat, Heated, Semi-Active Suspension, VAR - 449058

1шт.

5

47547570

DRIVER SEAT

Complete, CIH, Leather, Red, Heated, Vented, Semi-Active Suspension, VAR - 420371, 449059

1шт.

Выбрано товаров: 8
