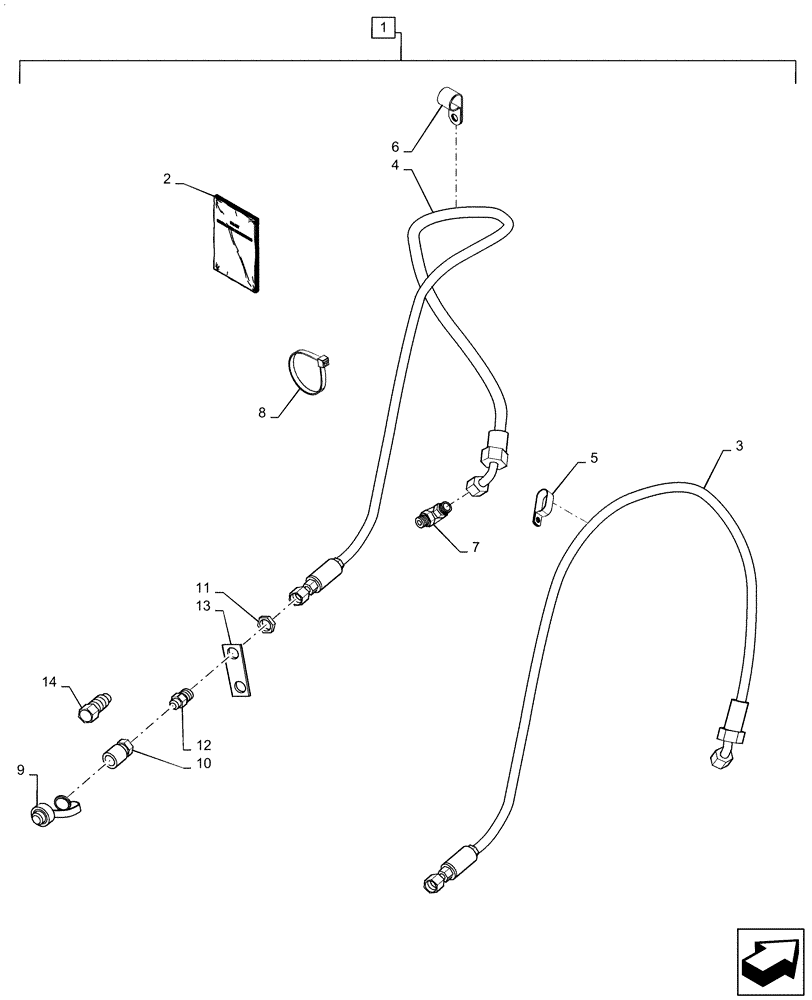

Запчасти Case IH STEIGER 500 (88.100.35[03]) - DIA KIT, ADDITIONAL PRODUCTS, SECOND CASE DRAIN (88) - ACCESSORIES

1

84386915

DIA KIT, TRACTOR

Second Case Drain, Incl 2 - 14

1шт.

2

47498096

INSTRUCTION

Second Case Drain DIA Kit

1шт.

3

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

Auxiliary Drain, Quadtrac

1шт.

4

84281577

HOSE ASSY.,12.7mm ID x 2032mm L, SAE 100R1

Auxiliary Drain

1шт.

5

R54363

CLAMP

Double Hose

2шт.

6

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

7

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

9

86539389

DUST CAP,29.2mm ID

3/8" Coupler

1шт.

10

385357A1

COUPLING

Female Disconnect, 3/8"

1шт.

11

701-903

NUT,13/16" - 16

1шт.

12

436249A1

FITTING

Bulkhead, 3/4" - 16 ORB x 13/16" - 14 ORFS

1шт.

13

84386919

BRACKET

Second Case Drain Support

1шт.

14

385358A1

QUICK MALE COUPLING,3/8"

3/8" Male Quick Disconnect

1шт.
