(55.988.AD[08]) - SCR EXHAUST SYSTEM QUALITY SENSOR HARNESS, 500

Запчасти Case IH STEIGER 500 (55.988.AD[08]) - SCR EXHAUST SYSTEM QUALITY SENSOR HARNESS, 500 (55) - ELECTRICAL SYSTEMS

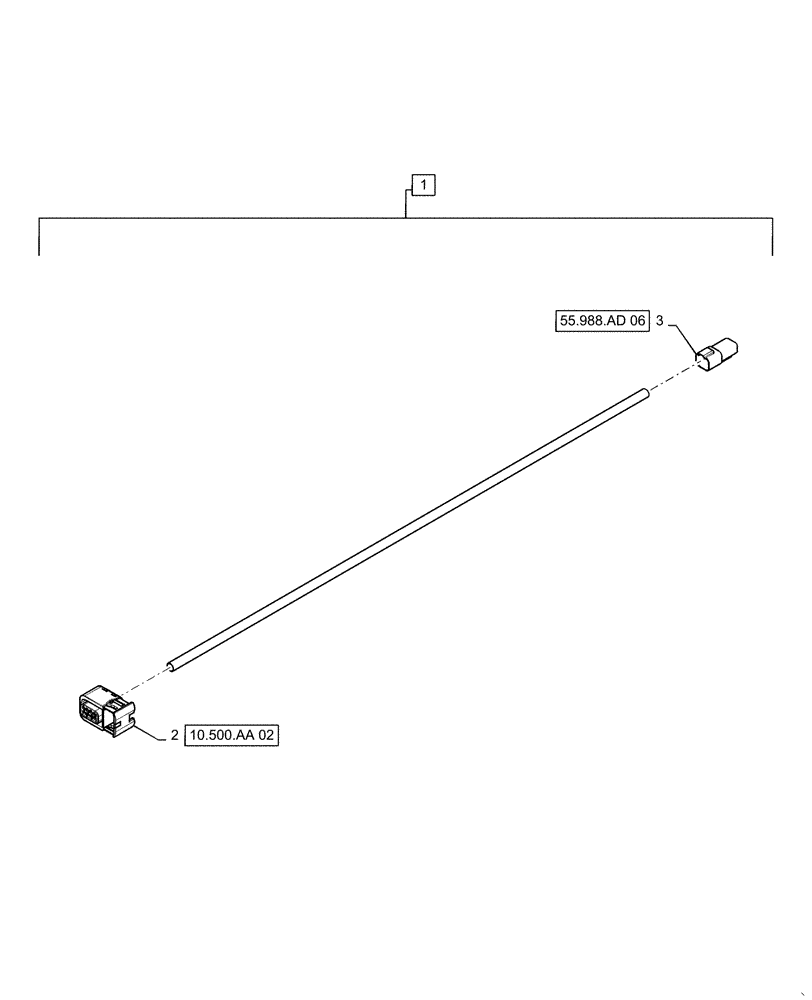

Схема запчастей Case IH STEIGER 500 - (55.988.AD[08]) - SCR EXHAUST SYSTEM QUALITY SENSOR HARNESS, 500 (55) - ELECTRICAL SYSTEMS
55.988.ad 06
3
10.500.aa 02
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47500498

WIRE HARNESS

Engine, Incl 2 - 3

1шт.

2

84149219

ELEC CONNECTOR

DEF Quality Sensor, C188

1шт.

2

84129571

PLUG

DEF Quality Sensor, C188

2шт.

2

84152576

TERMINAL

DEF Quality Sensor, C188

4шт.

2

84129570

SEAL

DEF Quality Sensor, C188

4шт.

3

87694154

CONTACT HOUSING,Male, 4 Pole

SCR Chassis Harness, C181F

1шт.

3

87594145

SPRING

SCR Chassis Harness, C181F

1шт.

3

87695623

ELEC. TERMINAL PIN

SCR Chassis Harness, C181F

4шт.
