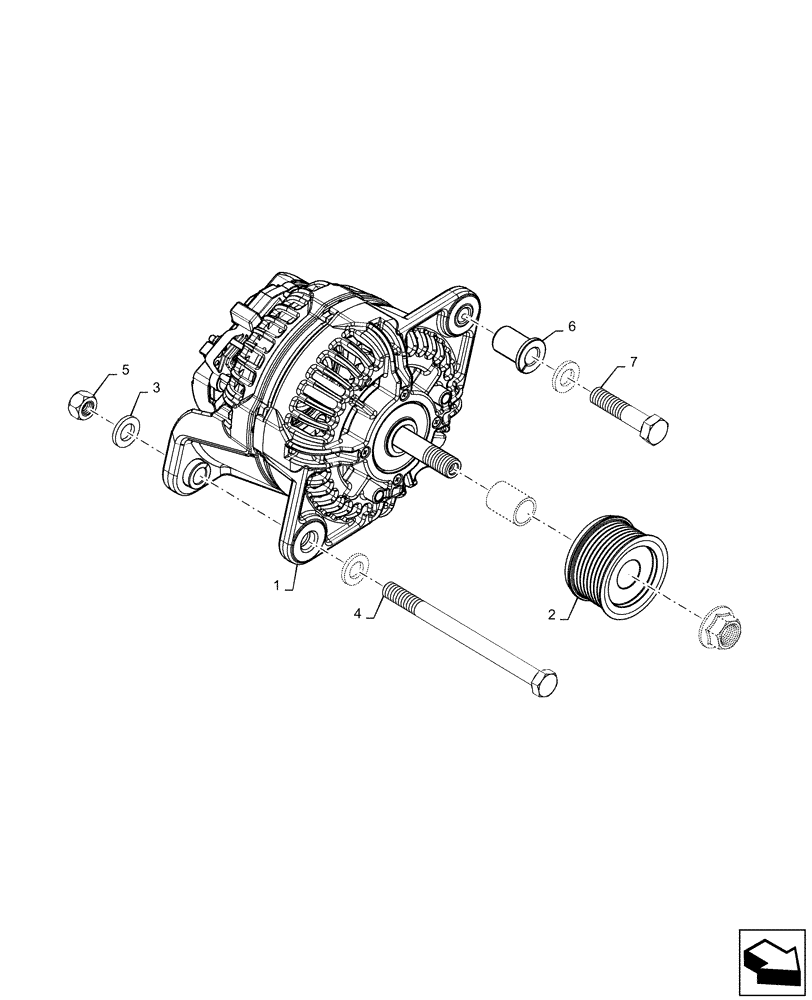

Запчасти Case IH STEIGER 500 (55.301.AA[01]) - ALTERNATOR ASSY, 500, 550, 600 (55) - ELECTRICAL SYSTEMS

1

87715398

ALTERNATOR,12V, 200A

200A, 14V, Incl Flange Nut

1шт.

1

87715398R

REMAN-ALTERNATOR

Reman

1шт.

1

87715398C

CORE-ALTERNATOR

Return Number

1шт.

2

84217637

PULLEY

Alternator

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

5

829-1412

NUT,M12, Cl 10.9

1шт.

6

84375575

SPACER,13mm ID x 27mm OD x 32mm L

Alternator Mounting

1шт.

7

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

1шт.
