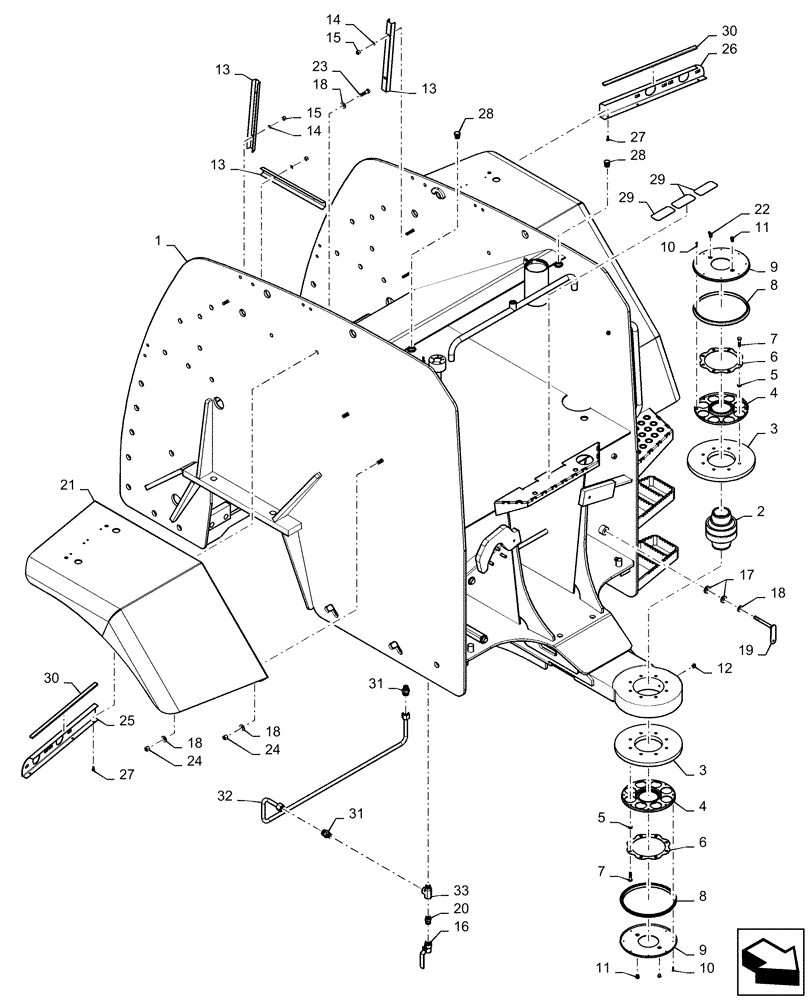

Запчасти Case IH STEIGER 500 (39.100.AS[02]) - REAR FRAME, 500, 540, ASN ZEF303001 (39) - FRAMES AND BALLASTING

1

47616565

FRAME

Rear, Fuel Tank

1шт.

2

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

3

84179787

RING

Retaining

2шт.

4

84151002

HOUSING

Frame Pivot

2шт.

5

432444A1

SPACER

Retainer

16шт.

6

87644212

RETAINING PLATE

Frame Pivot

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

84307902

RUBBER SEAL

Articulation Joint

2шт.

9

87644215

COVER

Articulation Joint

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

84348150

CHANNEL

Wire Guard

3шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

16

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel Tank Drain

1шт.

17

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

19

406390A1

HANDLE

Articulation Lock Storage

1шт.

20

47646702

ADAPTER,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

21

47423433

FENDER

Rear, RH, Years: -30-SEP-15

1шт.

21

48024644

FENDER

Rear, RH, Start Year: 01-OCT-15

1шт.

22

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

5шт.

25

84162377

COVER

Fender Light, RH

1шт.

26

84162390

COVER

Fender Light, LH

1шт.

27

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

28

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

29

87750668

PAD,2" x 4-1/2"

Non-Slip

3шт.

30

47419481

SEAL

Foam Fender

2шт.

31

87351379

HYD CONNECTOR

1" - 14 ORFS x 3/4" - 16 ORB

2шт.

32

47648533

TUBE

Crossover, Fuel Tank, Bottom

1шт.

33

84292714

TEE

3/4" - 16 NPT x 3/4" - 16 NPT x 3/4" - 16 NPT

1шт.
