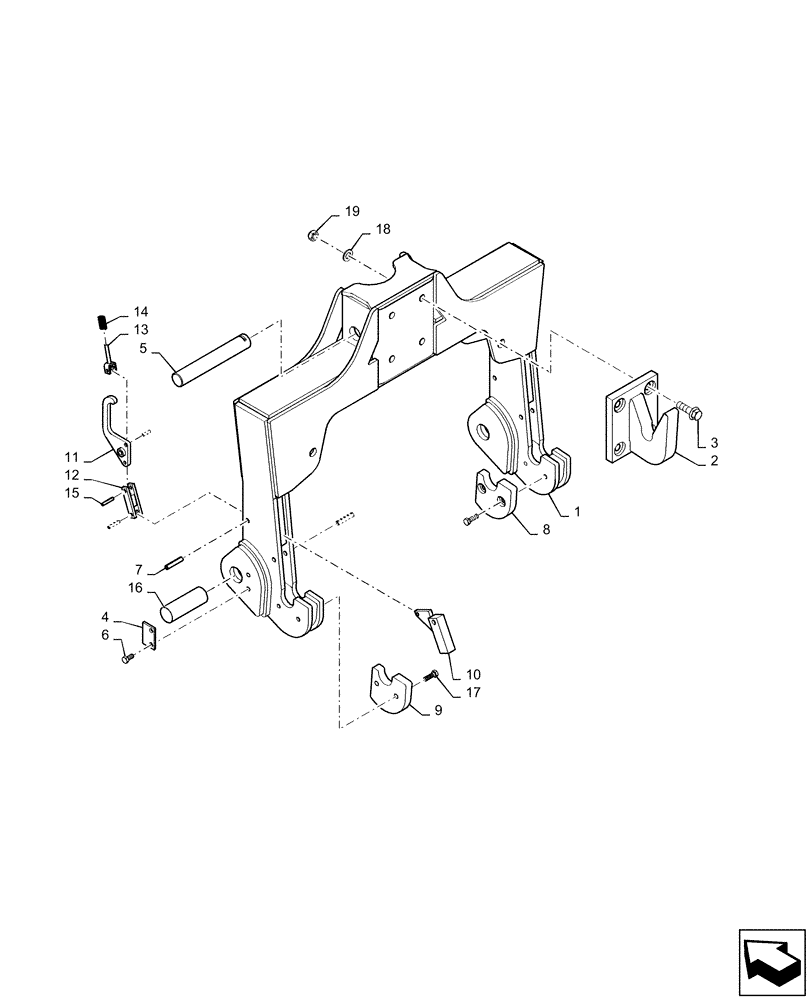

Запчасти Case IH STEIGER 500 (37.120.AW) - QUICK-HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

409653A1

COUPLING

Hitch

1шт.

2

409654A1

HOOK

Category IV - Narrow

1шт.

3

460-1240

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

4

409664A1

BLOCK

Retainer

3шт.

5

70-1895T1

PIN

1.75" x 11.35"

1шт.

6

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

7

38-33240

PIN,1/2" x 2 1/2", Coiled

4шт.

8

409656A1

CAP

Spacer, RH

1шт.

9

409658A1

CAP

Spacer, LH

1шт.

10

409659A1

STOP

Hitch Release

2шт.

11

409660A1

LATCH

Handle

2шт.

12

409661A1

CONNECTING LINK

Latch

2шт.

13

409662A1

CONNECTING LINK

Latch

2шт.

14

2-4345T1

SPRING

2.28" x 0.782

2шт.

15

38-32018

PIN,5/16" x 1 1/8", Coiled

6шт.

16

70-1894T1

PIN

2" x 5.9"

2шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

18

495-11081

WASHER,3/4", SAE

4шт.

19

280375

NUT,3/4"-10, GC

4шт.
