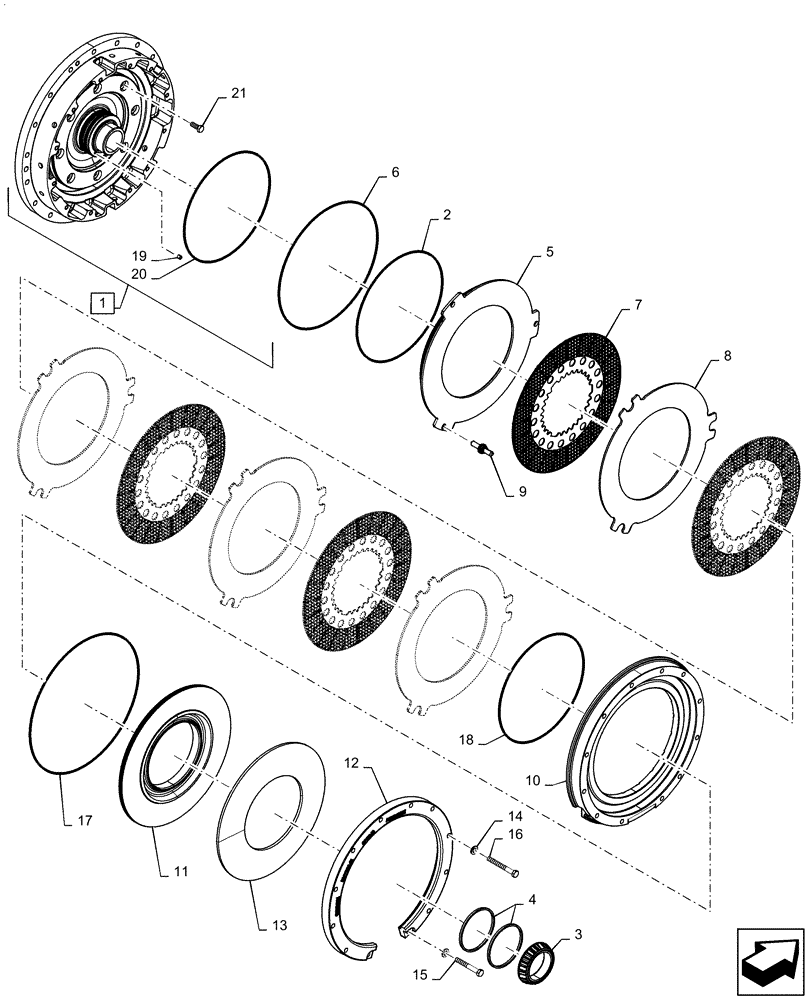

Запчасти Case IH STEIGER 500 (25.102.AD[03]) - FRONT AXLE BRAKES (25) - FRONT AXLE SYSTEM

1

84466646

BEARING CARRIER

Incl 19 - 21

1шт.

2

84470491

O-RING

0.125 x 13.0", CL 8

1шт.

3

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

4

247881A1

SEALING RING,Locking, 124mm ID x 131.6mm OD x 5.8mm Thk

Diff Lock, ID 131.6mm

2шт.

5

84466702

PISTON

Service Brake

1шт.

6

84470492

O-RING

0.125 x 15.0", CL 8

1шт.

7

84161878

BRAKE PLATE

Brake Friction

4шт.

8

228193A1

PLATE

Brake Seperator

4шт.

9

363254A1

ADJUSTER

Brake Assembly

3шт.

10

353367A3

PLATE

Backing Brake, Wheel

1шт.

11

353369A1

PISTON

Park Brake

1шт.

12

279707A1

RETAINER

Ring Spring

1шт.

13

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

Park Brake

1шт.

14

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

15

828-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

2шт.

16

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

10шт.

17

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

1шт.

18

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

1шт.

19

87520609

PLUG

Expansion, 6.5mm

1шт.

20

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

1шт.

21

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.
