Запчасти Case IH STEIGER 500 (21.155.AN[07]) - TRANSMISSION, 1ST SHAFT, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

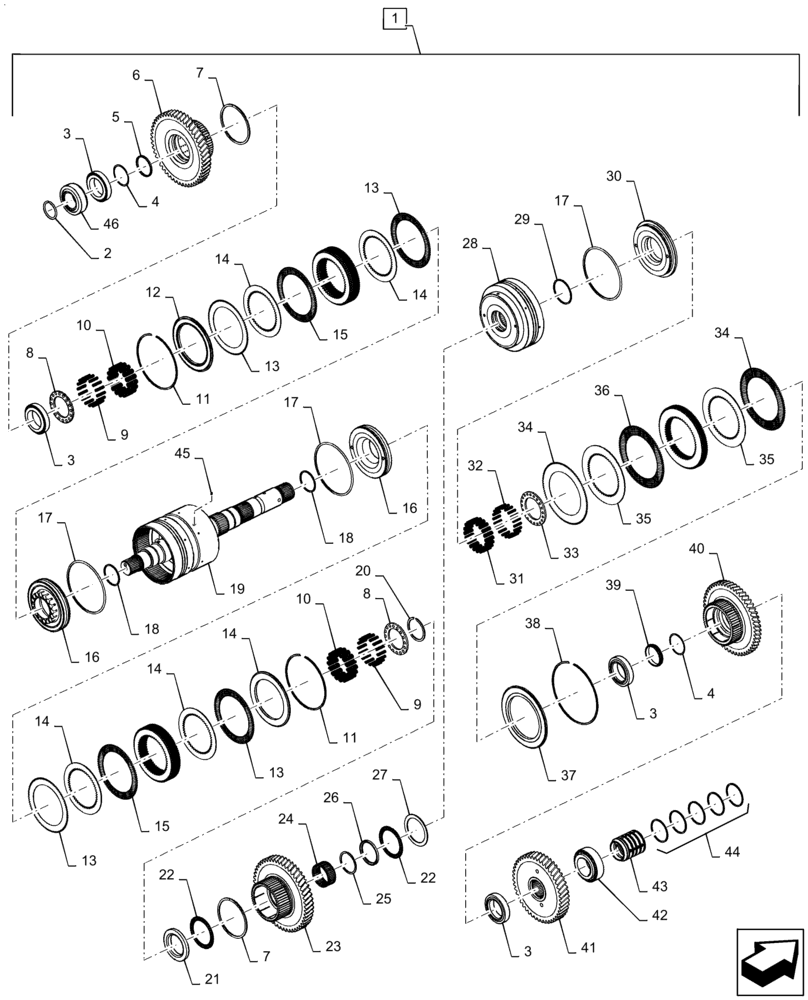

Схема запчастей Case IH STEIGER 500 - (21.155.AN[07]) - TRANSMISSION, 1ST SHAFT, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
16
17
35
11
8
17
22
15
24
13
34
18
28
13
10
14
12
35
3
32
17
2
9
3
8
40
23
3
22
1
6
31
13
39
14
4
30
4
3
33
25
46
43
7
5
13
44
14
20
18
27
16
14
7
37
38
36
26
42
41
9
19
34
14
11
29
15
45
10
21

Артикул

Название

Примечание

Количество

1

84314626

SHAFT

1st, 7" Clutch, 9C, Incl 2 - 46

1шт.

2

352378A1

RING, SNAP

2.5mm

1шт.

2

352394A1

RING, SNAP

2.6mm

1шт.

2

352397A1

RING, SNAP

2.7mm

1шт.

2

352400A1

RING, SNAP

2.8mm

1шт.

2

352815A1

RING, SNAP

2.9mm

1шт.

2

352816A1

RING, SNAP

3.0mm

1шт.

3

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1st Shaft

4шт.

4

352818A1

SHIM,0.15mm Thk

1шт.

4

352819A1

SHIM,0.18mm Thk

1шт.

4

352820A1

SHIM,0.20mm Thk

1шт.

4

352821A1

SHIM,0.25mm Thk

1шт.

4

352822A1

SHIM,0.30mm Thk

1шт.

4

352823A1

SHIM,0.50mm Thk

1шт.

5

352825A1

SPACER

1R, Bearing

1шт.

6

84314627

GEAR

1R

1шт.

7

87431394

RING

Seal

2шт.

8

87350230

PLATE

Spring Return

2шт.

9

84314631

SPRING

Return

32шт.

10

84314633

SPRING

Return

32шт.

11

352829A1

RING, SNAP

Drum

2шт.

12

87431390

CLUTCH PLATE

Clutch End

2шт.

13

352831A1

CLUTCH DISC

7" Faced

4шт.

14

S2080S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.4mm Thick

20шт.

14

S2090S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.1mm Thick

20шт.

15

352832A1

CLUTCH DISC

7" Faced

18шт.

16

84314641

PISTON

7"

2шт.

17

87431391

RING

Piston

3шт.

18

S2610S00F

RING

Seal

2шт.

19

84314643

SHAFT

1st Drum Assembly

1шт.

20

428163A1

RING, SNAP

Retaining

1шт.

21

353059A1

THRUST WASHER

1M Gear

1шт.

22

84314644

THRUST BEARING

1M Gear

2шт.

23

84314646

GEAR

1M

1шт.

24

87350260

NEEDLE BEARING

1M Gear

1шт.

25

358866A1

RING, SNAP

1M Gear

1шт.

26

358867A1

SPACER

1M Gear

1шт.

27

358908A1

THRUST WASHER

1M Gear

1шт.

28

84314648

DRUM

1F Clutch

1шт.

29

S5510S00F

RING

Seal

1шт.

30

84314650

PISTON

1F Clutch

1шт.

31

358971A1

SPRING

Return

20шт.

32

84314653

SPRING

Return

20шт.

33

87552056

RETAINER

1F Spring

1шт.

34

370555A1

CLUTCH DISC

Faced

2шт.

35

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.4mm Thick

5шт.

35

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.1mm Thick

5шт.

36

370556A1

CLUTCH DISC

8" Faced Clutch

4шт.

37

442803A1

PLATE

Clutch End

1шт.

38

428108A1

RING, SNAP

1F Gear

1шт.

39

359203A1

SPACER

1F Bearing

1шт.

40

84314657

GEAR

1F

1шт.

41

84314673

GEAR

Drive

1шт.

42

87431397

ROLLER BEARING,60mm ID x 110mm OD x 38mm W

Tapered

1шт.

43

84314680

CARRIER

Piston Ring

1шт.

44

S4150S00F

RING

Seal

5шт.

45

87672304

BALL

Steel

1шт.

46

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

Tapered

1шт.

Выбрано товаров: 58
