Запчасти Case IH STEIGER 500 (27.100.AK[03]) - 120" SPACING TO 80" SPACING REQUIERED PARTS LIST (27) - REAR AXLE SYSTEM

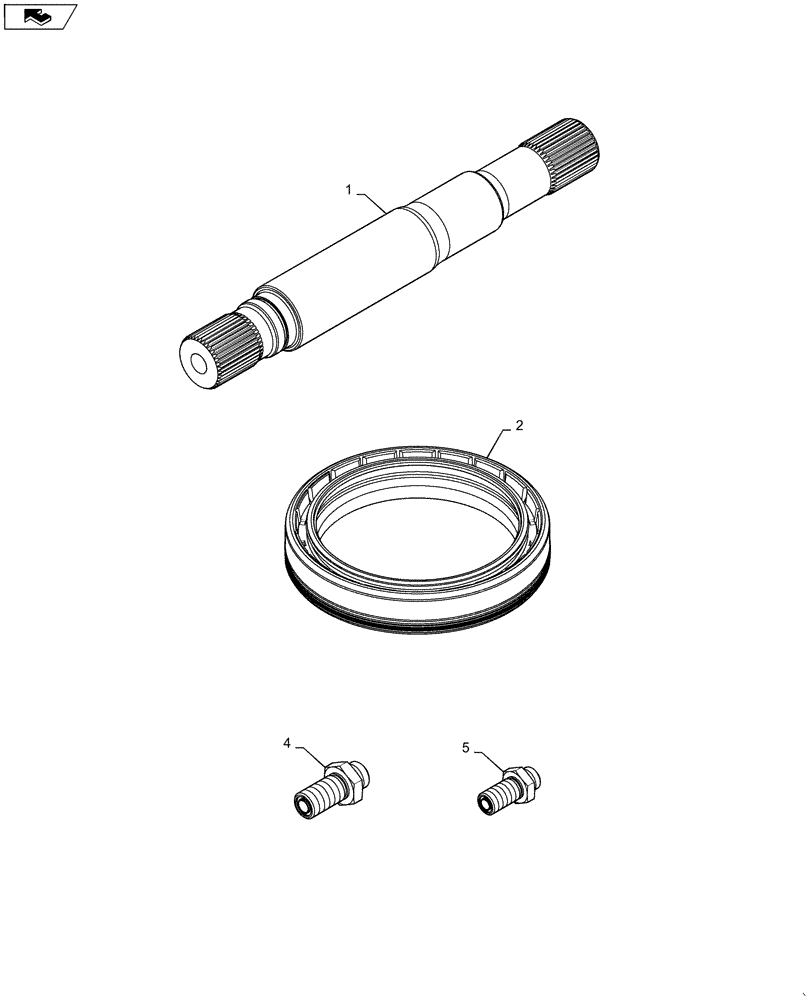

Схема запчастей Case IH STEIGER 500 - (27.100.AK[03]) - 120" SPACING TO 80" SPACING REQUIERED PARTS LIST (27) - REAR AXLE SYSTEM
5
home
1
2
4

Артикул

Название

Примечание

Количество

1

84467440

AXLE,570mm L

80" - RH

2шт.

1

84467441

AXLE,662mm L

80" - LH

2шт.

2

84466800

SEAL

Oil, Axle Beam - Dropbox

4шт.

3

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55 x 56.7 CL5, Not Illustrated

4шт.

4

86639061

UNION,13/16"-16 ORFS, Bulkhead

Not Illustrated

8шт.

5

86978770

UNION,11/16"-6, ORFS

Not Illustrated

4шт.

6

47418288

BOLT,Hex, M24 x 3 x 80mm, Class 10.9

Not Illustrated

24шт.

7

47357688

INSTRUCTION

Installation, Not Illustrated

1шт.

Выбрано товаров: 8
