Запчасти Case IH STEIGER 500 (27.100.AB[01]) - REAR AXLE ASSY - CENTER SECTION W/DIFF. LOCK (27) - REAR AXLE SYSTEM

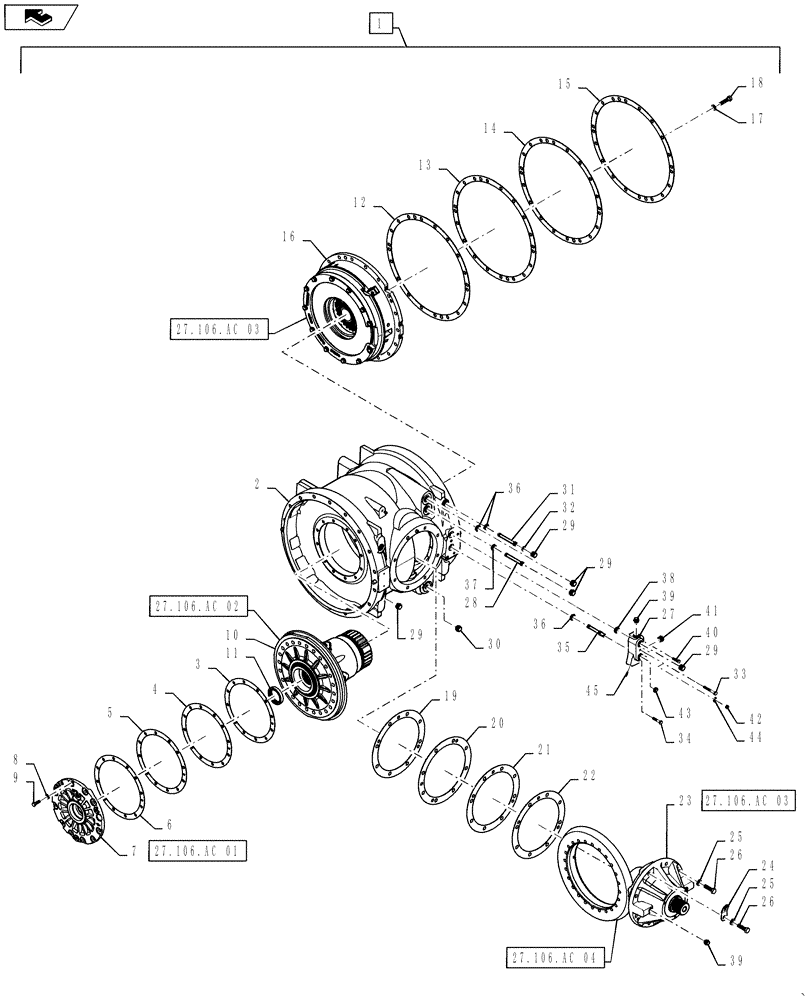

Схема запчастей Case IH STEIGER 500 - (27.100.AB[01]) - REAR AXLE ASSY - CENTER SECTION W/DIFF. LOCK (27) - REAR AXLE SYSTEM
36
9
33
40
29
12
5
22
25
25
27.106.ac 03
31
1
35
32
16
34
14
30
43
17
42
45
26
11
27.106.ac 0
39
18
41
home
44
27.106.ac 03
37
10
39
29
28
2
27.106.ac 01
6
38
4
24
19
27
8
27.106.ac 04
15
23
26
36
3
13
21
29
29
20
7

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Center Section Assy

1шт.

2

84604414

AXLE HOUSING

Center Section w/Dowels

1шт.

3

47423119

SHIM,290mm ID x 345mm OD x 0.508mm Thk

1шт.

4

47423118

SHIM,290mm ID x 345mm OD x 0.127mm Thk

1шт.

5

47423117

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

6

47423116

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

9

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

10

NSS

NOT SOLD SEPARAT

Differential Assy. - Incl in 1

1шт.

11

84466800

SEAL

Oil, Axle Beam - Dropbox

1шт.

12

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

13

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

14

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

15

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

Brake Assy, Track Axle - Incl in 1

1шт.

17

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

18

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

19

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

20

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

21

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

22

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

23

NSS

NOT SOLD SEPARAT

Carrier, Rear Pinion - See Figure 27.106.AC(03)

1шт.

24

87306552

BRACKET

Axle

1шт.

25

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

27

84604150

HYDRAULIC MANIFOLD

Axle Lube

1шт.

28

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

29

221579A1

PLUG,M22 x 1.5 ORB

1шт.

30

NA

NOT SERVICED

Shipping Plug

1шт.

31

84468365

TUBE

Service Brake Jumper

1шт.

32

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

33

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

34

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

35

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

36

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

37

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

38

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.

39

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

40

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

41

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

42

221579A1

PLUG,M22 x 1.5 ORB

1шт.

43

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

44

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

45

369372A1

PLUG,6.5mm OD x 5mm L

5 mm Expansion

1шт.

Выбрано товаров: 45
