(25.108.AB[01]) - FRONT AXLE - UPBOX WITH SPACERS - 80 IN

Запчасти Case IH STEIGER 500 (25.108.AB[01]) - FRONT AXLE - UPBOX WITH SPACERS - 80 IN (25) - FRONT AXLE SYSTEM

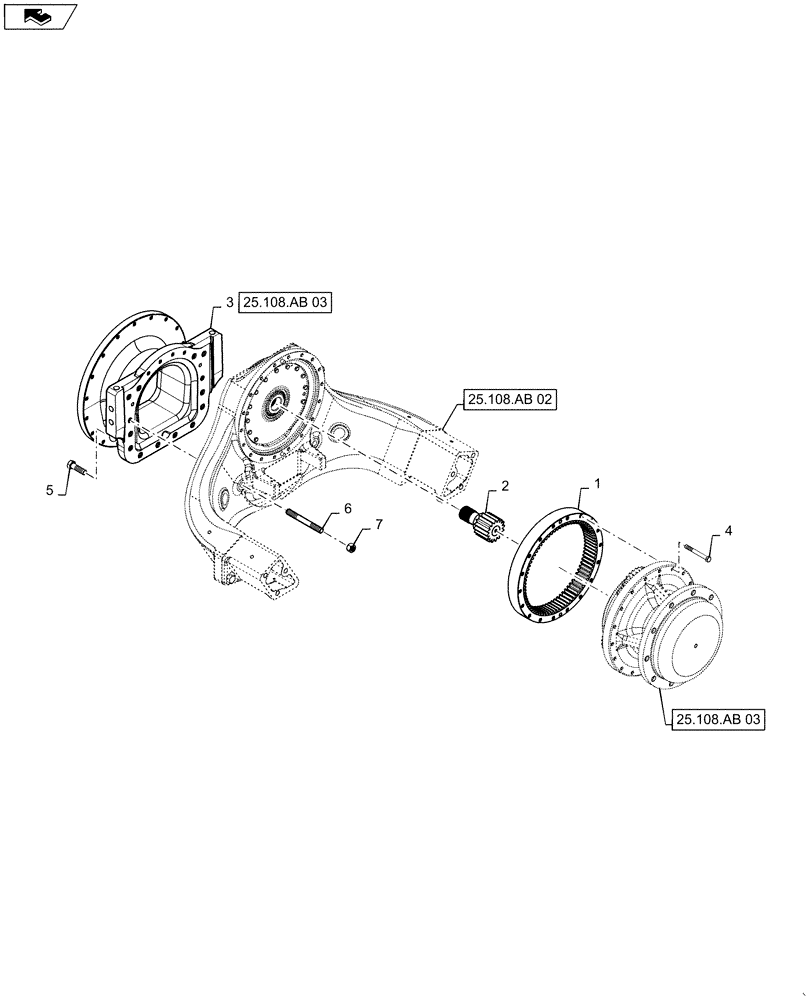

Схема запчастей Case IH STEIGER 500 - (25.108.AB[01]) - FRONT AXLE - UPBOX WITH SPACERS - 80 IN (25) - FRONT AXLE SYSTEM
1
3
home
2
6
7
25.108.ab 02
5
25.108.ab 03
4
25.108.ab 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310695A1

RING GEAR,77T

77 Tooth

1шт.

2

360335A1

SHAFT

Sun Gear

1шт.

3

84523949

HOUSING

Center Section Extension

1шт.

4

828-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

18шт.

5

47418288

BOLT,Hex, M24 x 3 x 80mm, Class 10.9

12шт.

6

84536429

STUD

M24 x 220mm Length

2шт.

7

829-1324

NUT

M24

2шт.

Выбрано товаров: 7
