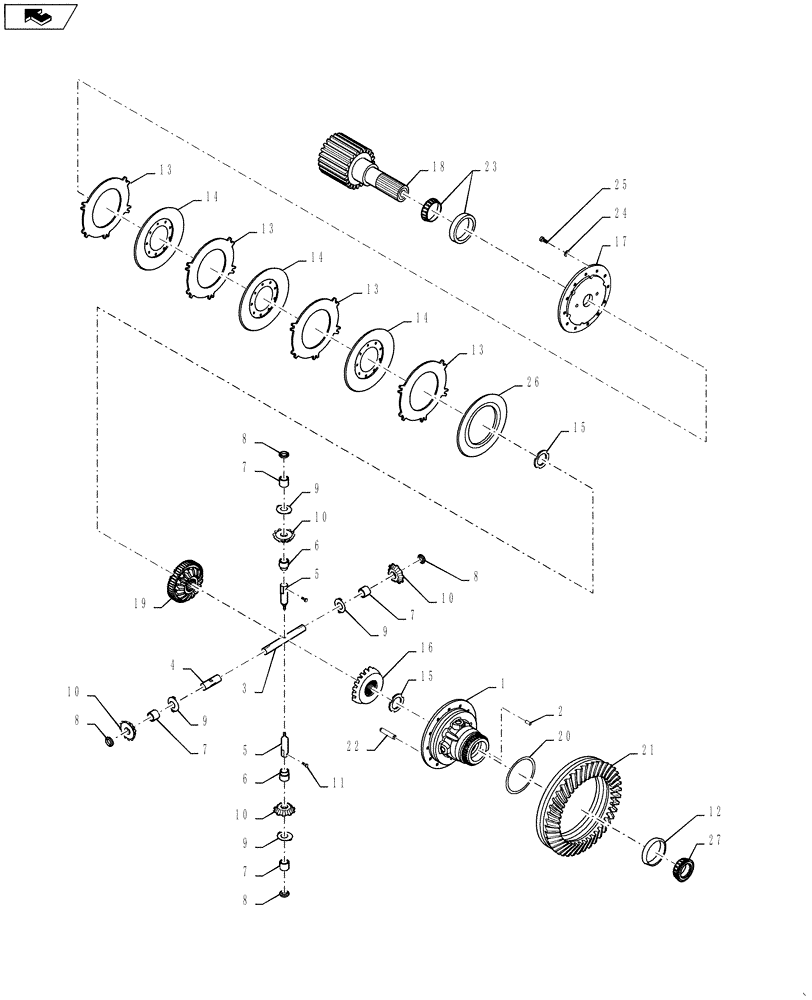

Запчасти Case IH STEIGER 500 (25.102.AD[03]) - FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM

1

84322015

CARRIER

With Diff Lock, Incl 2

1шт.

2

87520606

PLUG

10mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator

4шт.

14

120679C1

PLATE

Friction

3шт.

15

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

16

1259633C3

GEAR

Bevel, 20T

1шт.

17

84323113

COVER

Diff Case W/ Lock

1шт.

18

87522606

GEAR SET

Ring & Pinion, 19T

1шт.

19

1259634C3

PINION

Lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

21

87522606

GEAR SET

Ring & Pinion, 19 T

1шт.

22

137023A1

DOWEL

Diff Lock Reactor Pin

6шт.

23

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

& Cone

1шт.

24

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

25

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

26

1997422C1

PISTON

Brake

1шт.

27

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.
