Запчасти Case IH STEIGER 500 (21.113.AD[03]) - TRANSMISSION - POWER SHIFT - REAR HOUSING, YOKES, AND RETAINERS, PS4, 8C AND 8.5C (21) - TRANSMISSION

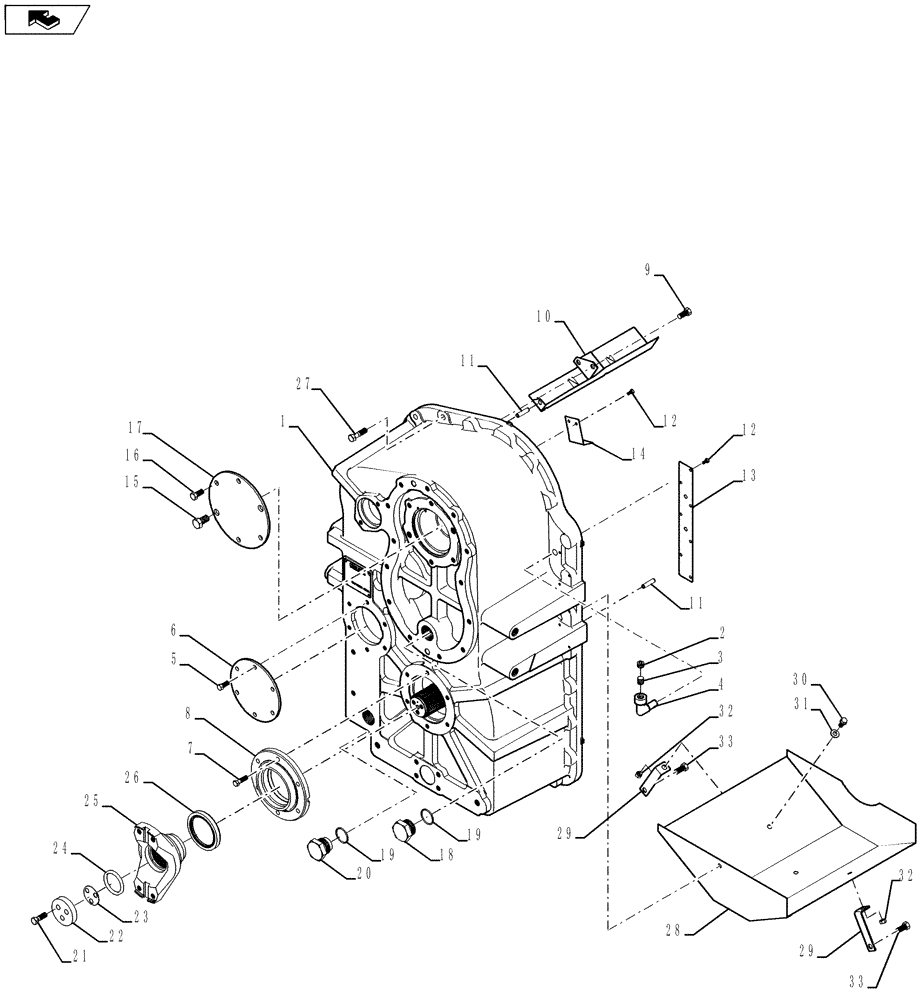

Схема запчастей Case IH STEIGER 500 - (21.113.AD[03]) - TRANSMISSION - POWER SHIFT - REAR HOUSING, YOKES, AND RETAINERS, PS4, 8C AND 8.5C (21) - TRANSMISSION
20
14
2
18
10
21
23
8
16
26
31
11
6
25
12
33
7
12
29
28
33
13
3
15
1
22
17
19
5
27
11
30
9
24
29
home
32
4
19
32

Артикул

Название

Примечание

Количество

1

84317512

TRANSMISSION

Front & Rear Transmission

1шт.

2

428156A1

PLUG

Taper

1шт.

3

427524A1

BREATHER

Filter

1шт.

4

370632A1

TUBE

Breather

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

87350468

COVER

Rear 4th

1шт.

7

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

8

87350470

RETAINER

Rear Output

1шт.

9

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

87350473

GUTTER

Input

1шт.

11

838-51040

LOCK PIN,M10 x 40, Slotted

2шт.

12

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

9шт.

13

370635A2

BAFFLE

Breather

1шт.

14

370634A1

TROUGH

Gutter Assy, 2/3 RR

1шт.

15

427559A1

BOLT

Hex

2шт.

16

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

17

427558A1

COVER

PTO

1шт.

18

303493A1

PLUG,Hex Soc, M42 x 2, ORB

W/ O-Ring

1шт.

19

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

20

375456A1

PLUG, DRAIN

Magnetic

1шт.

21

514-853

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.

22

427515A1

RETAINING PLATE

2шт.

23

427517A1

SHIM,0.1mm Thk

1шт.

23

427519A1

SHIM,0.3mm Thk

1шт.

24

428165A1

O-RING

2шт.

25

87351323

YOKE

Output

1шт.

26

84315358

OIL SEAL

1шт.

27

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

25шт.

28

87350496

BAFFLE

Oil

1шт.

29

370637A1

BRACKET

Strap, Oil Baffle

2шт.

30

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

33

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 34
