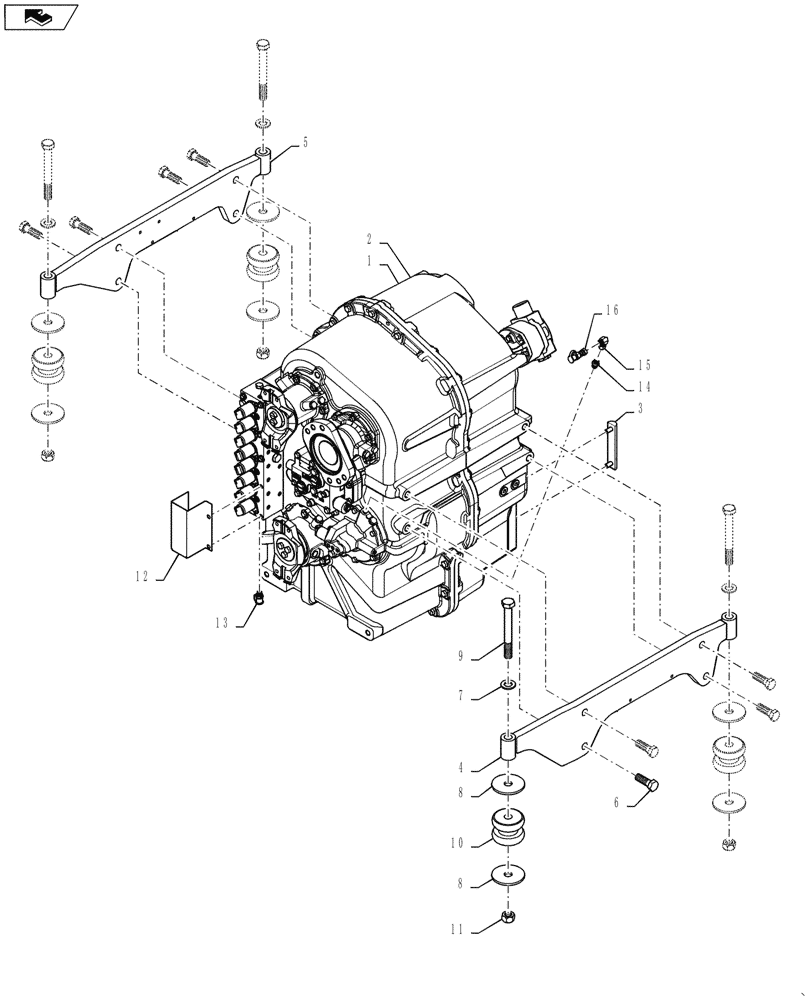

Запчасти Case IH STEIGER 500 (21.113.AD[01]) - TRANSMISSION MOUNTING (424822) (21) - TRANSMISSION

1

84317502

TRANSMISSION

Transmission Assembly, 8C Powershift, Serial Range: ZBF125001-ZDF138503

1шт.

1

84317502R

REMAN-TRANSMISSION

Transmission Assembly, 8C Powershift

1шт.

1

84317502C

CORE-TRANSMISSION

Return Number

1шт.

1

47492096

TRANSMISSION

, Start Serial: ZDF138504

1шт.

1

84317503

TRANSMISSION

Transmission Assembly, 8.5C Powershift, Serial Range: ZBF214001-ZDF138476

1шт.

1

84317503R

REMAN-TRANSMISSION

Transmission Assembly, 8.5C Powershift

1шт.

1

84317503C

CORE-TRANSMISSION

Return Number

1шт.

1

47492097

TRANSMISSION

Assy, PS4, SR, Powershift, 8.5C, Start Serial: ZDF138477

1шт.

2

L116247

GAUGE

Liquid Level

1шт.

3

87340823

HYD CONNECTOR

Transmission Fill

1шт.

4

84378757

BRACKET, SUPPORTING

Transmission Mounting

1шт.

5

84378755

BRACKET, SUPPORTING

Transmission Mounting

1шт.

6

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

8шт.

7

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

8

379611A1

WASHER

98.6MM x 6.4MM

8шт.

9

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

10

340967A1

RUBBER MOUNTING

2-Piece

4шт.

11

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

12

178889A1

DIAGNOSTIC COUPLER

Diagnostic

2шт.

13

87597484

HOSE,31.80 mm ID, 44.50 mm ID x 559.00 mm, SAE 30R7

1шт.

14

87646809

TUBE,46.23 mm L

Transmission Fill

1шт.

15

325737A1

CAP

Transmission Filler

1шт.

16

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

17

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

18

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

20

412141

NUT,M10 x 1.5, Cl 8

2шт.

21

87335429

COVER

Transmission Solenoid

1шт.

22

87646822

BRACKET

Fill Cap Lock

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
