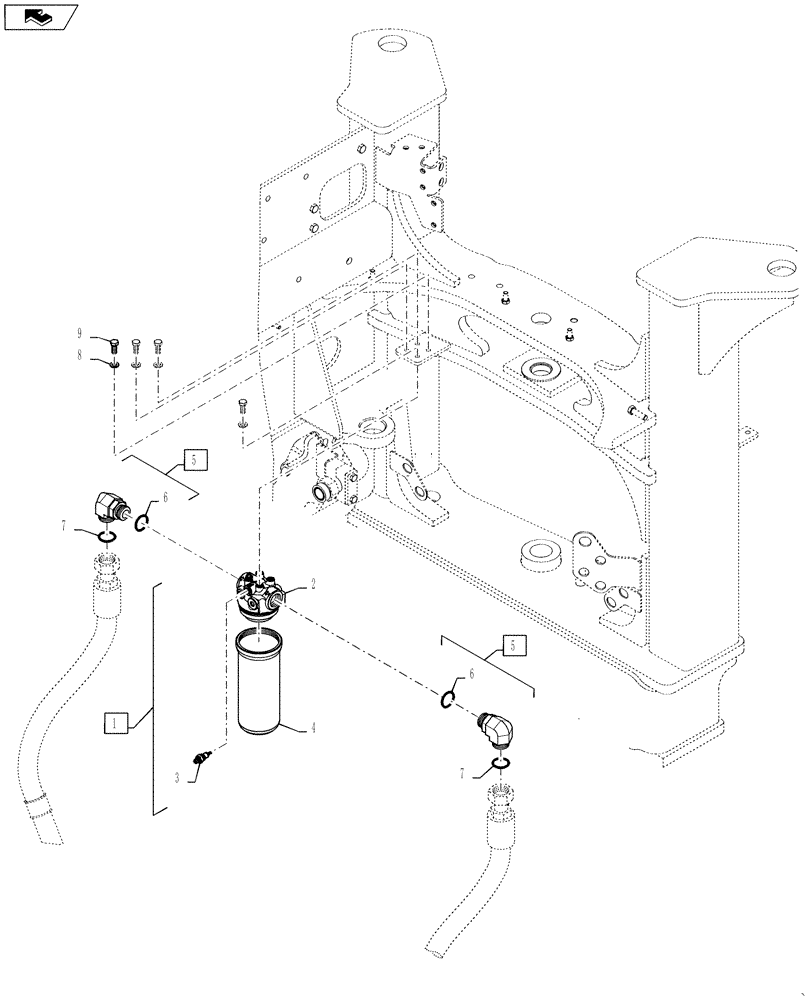

Запчасти Case IH STEIGER 500 (21.105.BC[01]) - TRANSMISSION FILTER ASSY. (21) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

TRANSMISSION FILTER ASSY - ORDER COMPONENTS 2 thru 4

1шт.

2

84189326

FILTER

FILTER HEAD

1шт.

3

N6755

PRESSURE SWITCH

PRESSURE SWITCH

1шт.

4

87586809

HYDRAULIC OIL FILTER

SPIN-ON

1шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 6 - 7

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl in 5

2шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Incl in 5

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
