Запчасти Case IH STEIGER 500 (14.100.AR[12]) - PTO HANGER ASSY. (14) - MAIN GEARBOX & DRIVE

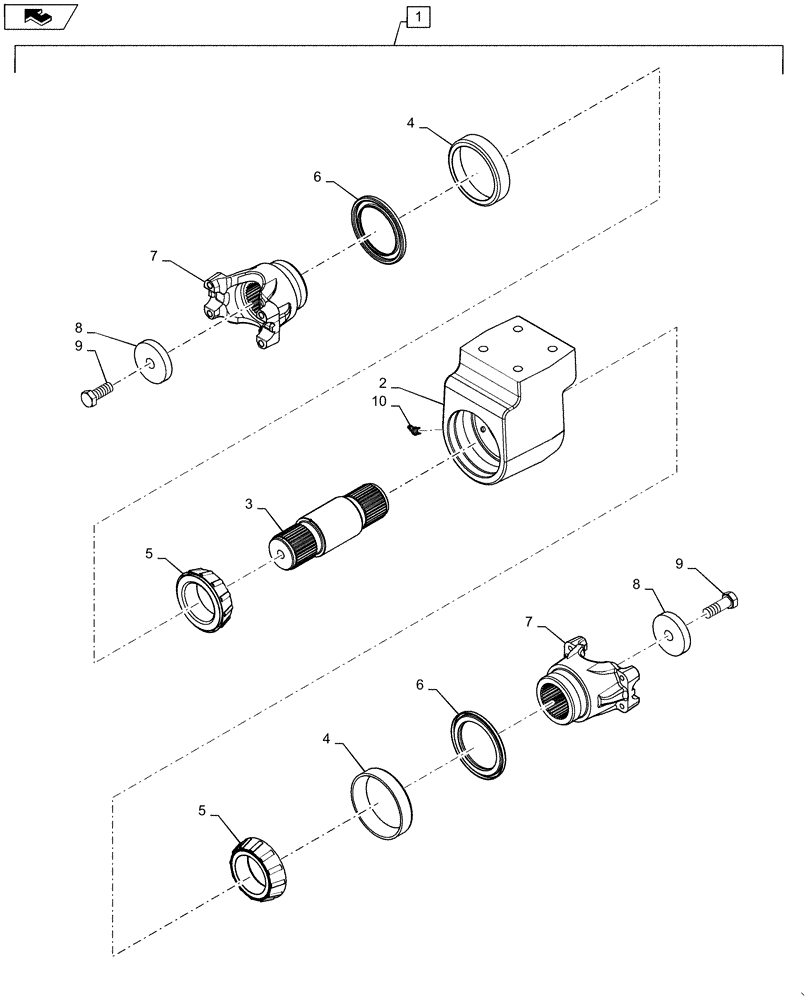

Схема запчастей Case IH STEIGER 500 - (14.100.AR[12]) - PTO HANGER ASSY. (14) - MAIN GEARBOX & DRIVE
8
10
9
4
4
6
3
1
2
7
6
7
5
9
5
8
home

Артикул

Название

Примечание

Количество

1

404603A1

BEARING ASSY

PTO Hanger Assy - Incl 2 - 11

1шт.

2

399447A1

HOUSING, BEARING

PTO Hanger Assy.

1шт.

3

399446A1

SHAFT

PTO Hanger

1шт.

4

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

2шт.

5

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

6

435537A1

SEAL

PTO Hanger Bearing

2шт.

7

398554A1

YOKE

PTO Hanger Bearing

2шт.

8

19-5864

WASHER

2шт.

9

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

331-329

GREASE

1 oz., Wheel bearing Grease (Not Shown)

1шт.

Выбрано товаров: 11
