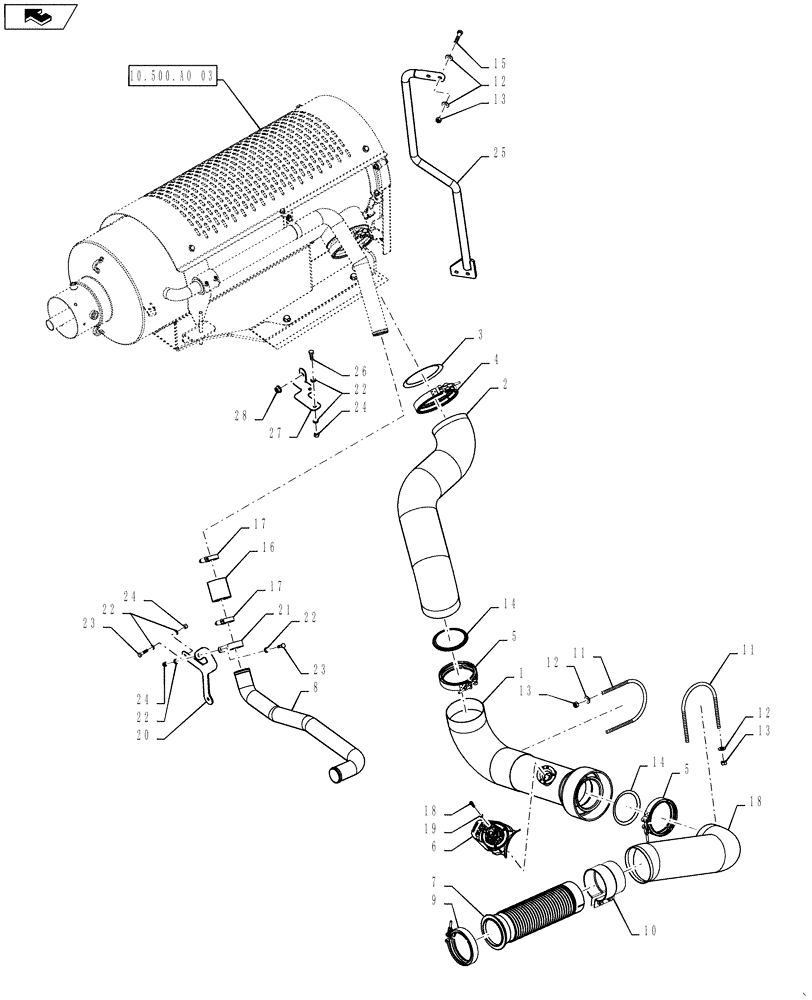

Запчасти Case IH STEIGER 500 (10.500.AO[02]) - EXHAUST SYSTEM - SELECTIVE CATYLATIC REDUCTION (SCR) - EURO (10) - ENGINE

1

84412504

TUBE

Doser

1шт.

2

84490172

TUBE

Exhaust, Double Wall

1шт.

3

84349224

GASKET

Exhaust

1шт.

4

84469765

CLAMP,Exhaust; 5"

Hose, Exhaust

1шт.

5

84356331

CLAMP,118mm OD x 26mm W

Exhaust

1шт.

6

84247021

MODULE,Dosing Injector

DENOX@, UREA Dosing - Steiger 350

1шт.

7

84306557

EXHAUST SYSTEM PIPE,102.74 mm ID x 106.10 mm OD x 329.6, 77.5 mm L

1шт.

8

84306559

TUBE,101.60 mm, 127.00 mm OD

1шт.

9

A170807

CLAMP,102mm ID

Hose - Steiger 350

1шт.

10

90-8319T1

CLAMP

Exhaust

1шт.

11

84354957

U-BOLT

Exhaust

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

13

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

14

84349222

GASKET,1.3mm Thk

Exhaust

2шт.

15

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

16

84583310

HOSE

Straight Connector

2шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

18

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

20

84491535

BRACKET

Aspirator Tube Support

1шт.

21

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

23

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

25

84489803

HANDLE

Grab

1шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

27

84499455

BRACKET

Harness Support

1шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Nut, Flange

8шт.
