Запчасти Case IH STEIGER 500 (90.160.CD[02]) - FRONT CONSOLE SWITCHES - IGNITION & DIMMER (90) - PLATFORM, CAB, BODYWORK AND DECALS

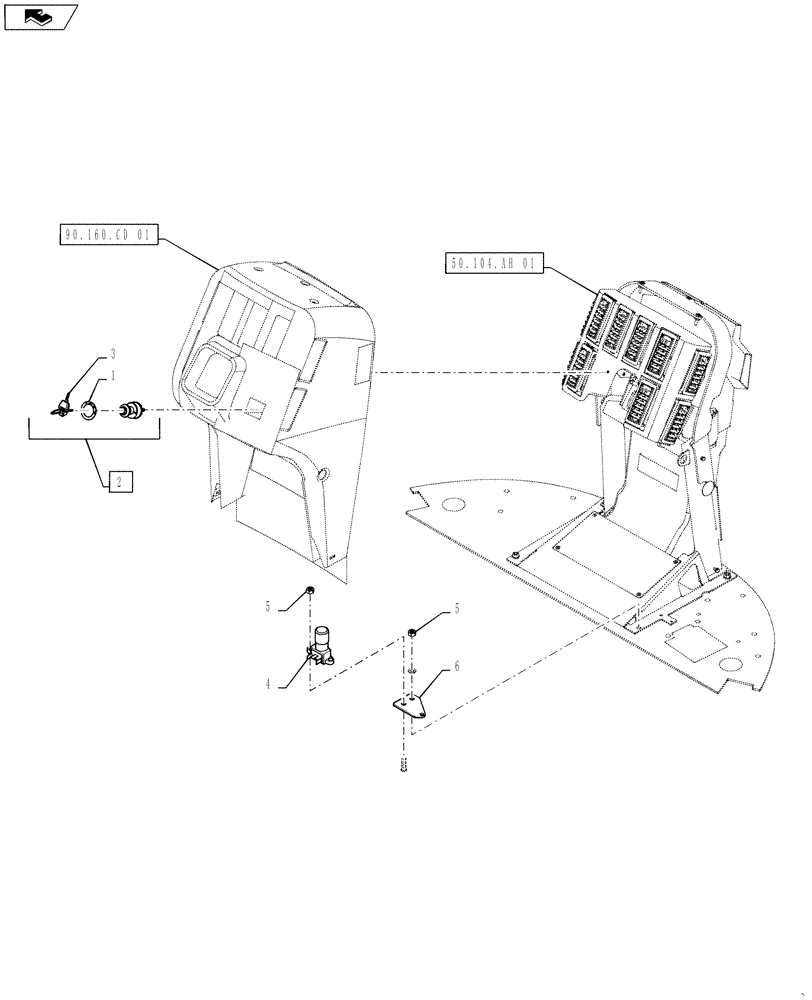

Схема запчастей Case IH STEIGER 500 - (90.160.CD[02]) - FRONT CONSOLE SWITCHES - IGNITION & DIMMER (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.160.cd 01
1
5
5
home
4
6
50.104.ah 01
2

Артикул

Название

Примечание

Количество

1

84318400

DECAL

Ignition Switch

1шт.

2

363914A1

IGNITION SWITCH

W/ 2 Padded Keys

1шт.

3

86502201

IGNITION KEY

Ignition (Replacement)

1шт.

4

87340325

SWITCH

Engine Deceleration

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

87561659

MOUNTING PLATE

Dimmer Switch

1шт.

Выбрано товаров: 6
