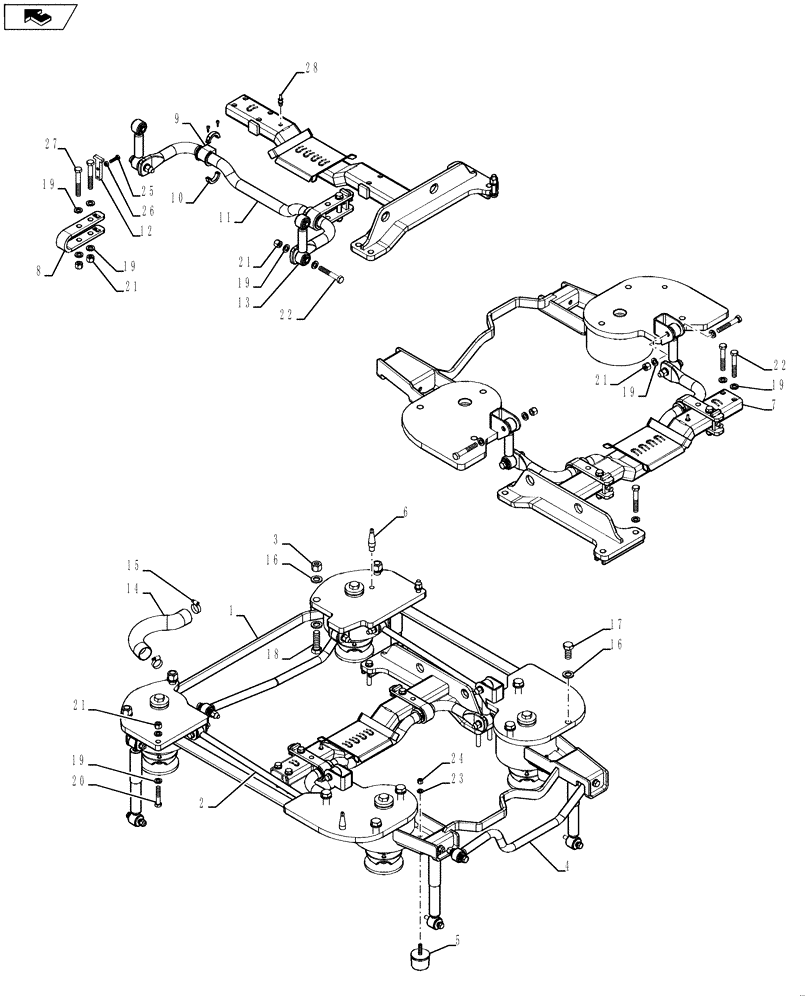

Запчасти Case IH STEIGER 500 (90.150.AJ[01]) - CAB SUSPENSION - MAIN FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84378470

CAB BODY

Cab Suspension Super Structure

1шт.

2

84330334

LINK

Longitudinal

2шт.

3

86639243

NUT,M24 x 3, Cl 8

8шт.

4

84427994

LINK

Assy, Panhard Rear

1шт.

5

84391698

BUMPER

Rubber, Down

4шт.

6

84326029

PIN

Alignment

2шт.

7

84542998

SUPPORTING ARM

Stabilizer Mounting

1шт.

8

84423085

BRACKET

Pivot Bushing

2шт.

9

84319416

RUBBER BUSHING

Susp. Cab with Sway Bar

2шт.

10

84326030

CLAMP

Anti-Roll Bar

2шт.

11

84374188

BAR

Anti-Roll

1шт.

12

84423084

SUPPORT

Stabilizer Adjustment

2шт.

13

84379633

LINKAGE

Drop

2шт.

14

84371676

AIR HOSE

Intake

1шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

16

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

14шт.

17

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

6шт.

18

86639184

BOLT,Hex, M24 x 80mm, Cl 10.9, Full Thd

4шт.

19

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

42шт.

20

86577946

BOLT,Hex, M16 x 80mm, CL 10.9

2шт.

21

412066

NUT,M16 x 2.0, Cl 8

18шт.

22

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

16шт.

23

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

24

87497916

NUT,Hex, M12 x 1.75, Cl 8

M12

4шт.

25

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

4шт.

28

426285A1

STUD

Threaded, Captive

1шт.
