(90.150.AC[02]) - SEAT LATCH PLATE ASSY. - EURO ONLY

Запчасти Case IH STEIGER 500 (90.150.AC[02]) - SEAT LATCH PLATE ASSY. - EURO ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

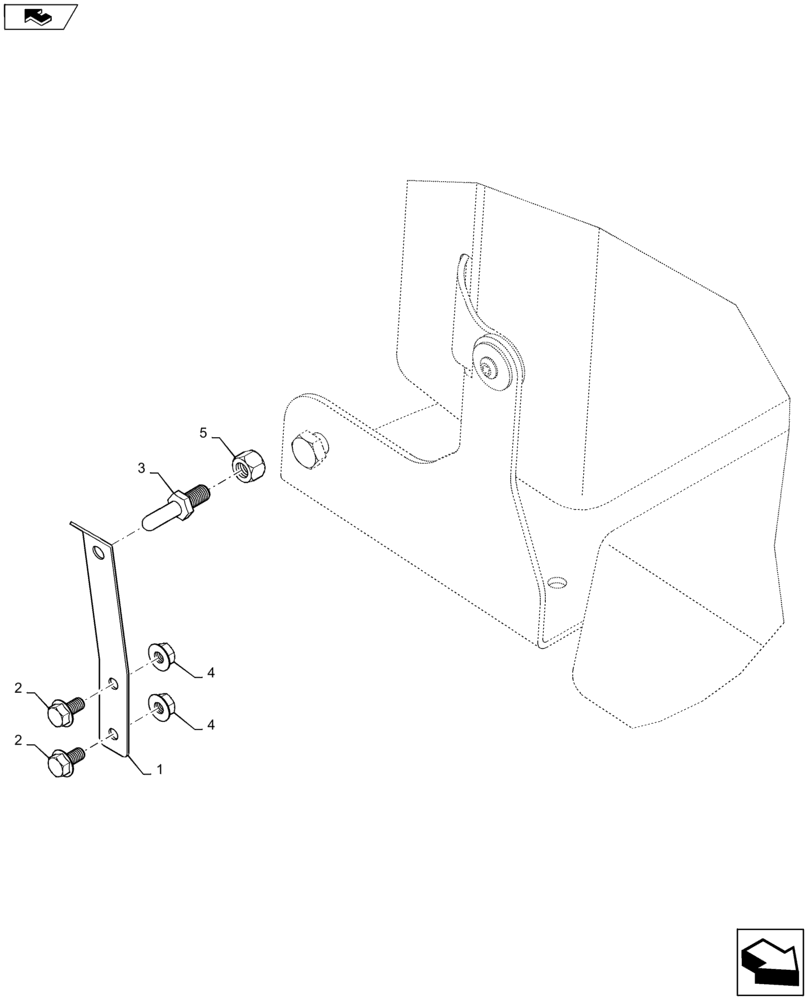

Схема запчастей Case IH STEIGER 500 - (90.150.AC[02]) - SEAT LATCH PLATE ASSY. - EURO ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
2
4
3
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84466531

CATCH PLATE

Instructional Seat

1шт.

2

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

3

87423532

PIN

Catch

1шт.

4

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
