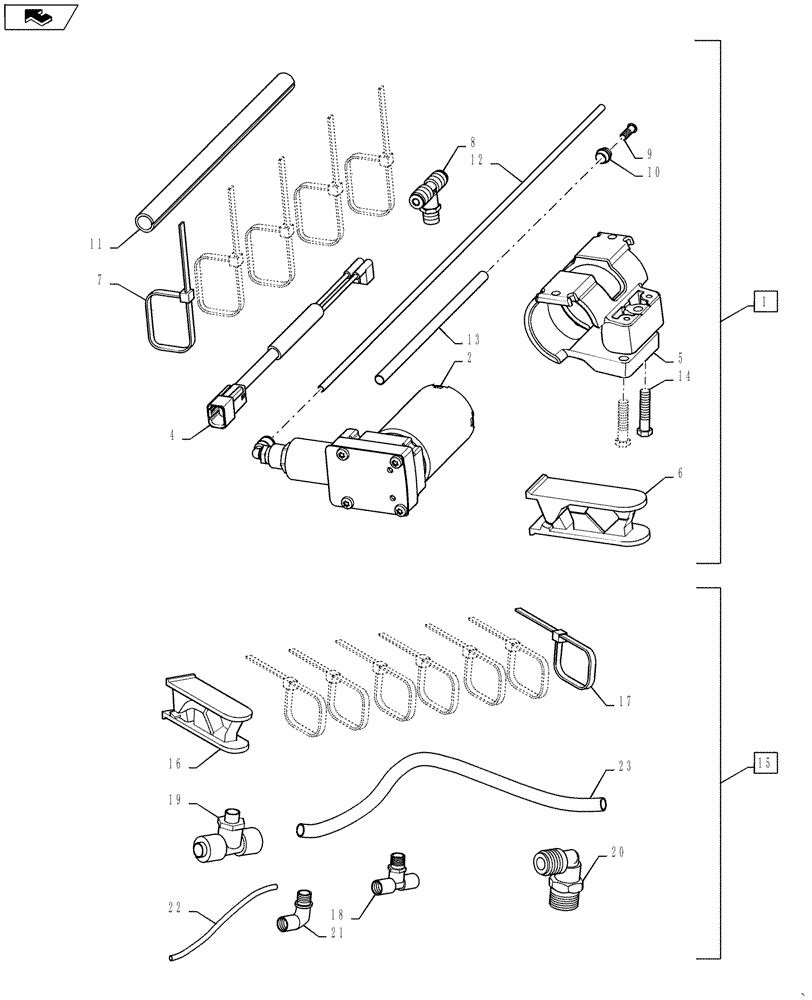

Запчасти Case IH STEIGER 500 (90.124.AN[02]) - SEAT SUSPENSION - SUSPENSION COMPRESSOR SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392273

KIT

Seat Compressor Service Kit - Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Compressor, Ventrex, 12V, 1/8 NPT Short - Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Instructions, Compressor Change (Not Shown) - Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Harness, Wire, 4 Pin - Inccl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Clamp - Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cutter, Plastic - Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Cable Tie - Incl in 1

5шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Male Branch Tee, 5/32 PTC x 1/8 NPT - Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Tube - Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Sleeve - Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Tubing, Convoluted, 1/2 x 8 - Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 5/32 OD x 32 L - Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 1/4 OD x 6 L - Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Hex Hd Flange, #7 x 1.25 Slotted - Incl in 1

2шт.

15

84392280

SERVICE KIT

Seat Air Line Service Kit - Incl 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

Cutter, Plastic - Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Cable Tie - Incl in 15

7шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Male Branch tee, 5/32 PTC x 1/8 NPT - Incl in 15

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Male Branch tee, 3/8 PTC x 1/8 NPT - Incl in 15

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, 90 Elbow, 3/8 PTC to 1/2 NPT - Incl in 15

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, 90 Elbow, 5/32 PTC x 1/8 NPT - Incl in 15

1шт.

22

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 5/32 OD - Incl in 15

6 FTшт.

23

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 3/8 x 0.50, 250 PSI

2 FTшт.
