(90.124.AK[01]) - SEAT, AIR SUSPENSION - ASSY - DELUX SEMI-ACTIVE & LUXURY SEAT

Запчасти Case IH STEIGER 500 (90.124.AK[01]) - SEAT, AIR SUSPENSION - ASSY - DELUX SEMI-ACTIVE & LUXURY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

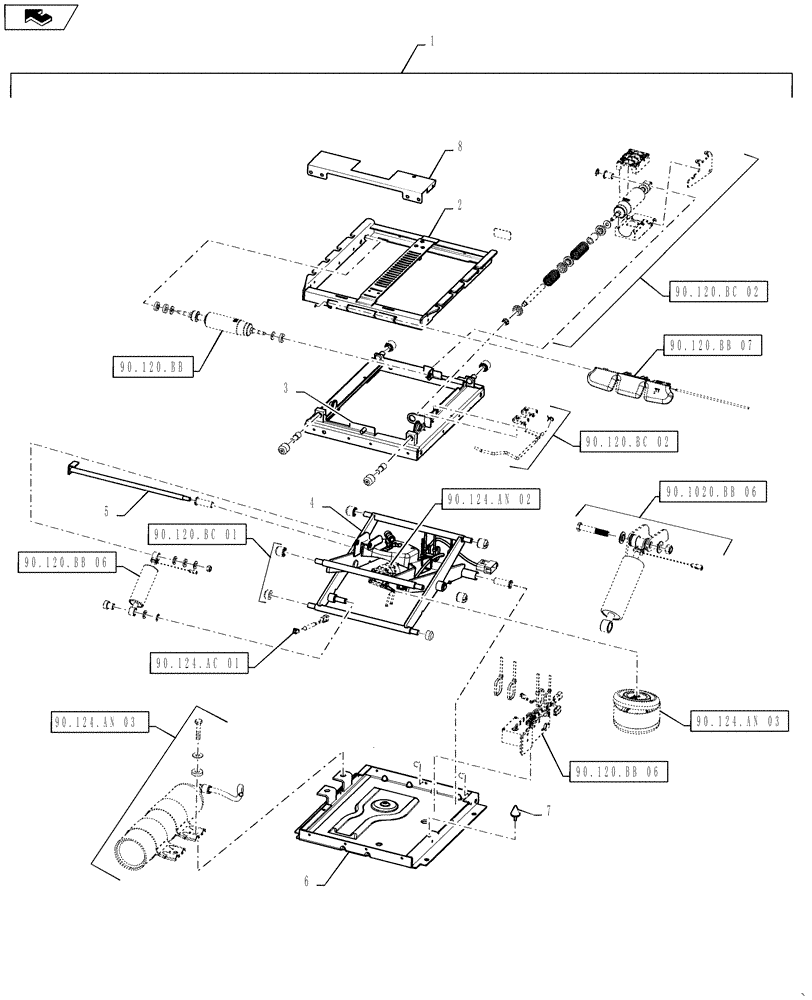

Схема запчастей Case IH STEIGER 500 - (90.124.AK[01]) - SEAT, AIR SUSPENSION - ASSY - DELUX SEMI-ACTIVE & LUXURY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.bc 01
3
90.120.bc 02
8
1
90.124.an 02
home
90.1020.bb 06
2
7
90.120.bb
90.120.bb 06
90.124.an 03
4
90.120.bc 02
5
90.124.an 03
6
90.120.bb 07
90.120.bb 06
90.124.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84406040

SERVICE KIT

Semi-Active Air Suspension Assy. - Incl 2 - 8

1шт.

2

333274A2

ISOLATOR

Frame

1шт.

3

86994256

HOUSING

Lower

1шт.

4

86994258

ARM

Suspension Scissor

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333273A1

HOUSING

Upper

1шт.

7

333295A1

BUMPER

Bumper

1шт.

8

302029A2

PLATE

Cover

1шт.

Выбрано товаров: 8
