(90.120.BB[02]) - SEAT PEDESTAL & MECHANICAL SUSPENSION - LATERAL ISOLATOR SERVICE KIT

Запчасти Case IH STEIGER 500 (90.120.BB[02]) - SEAT PEDESTAL & MECHANICAL SUSPENSION - LATERAL ISOLATOR SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

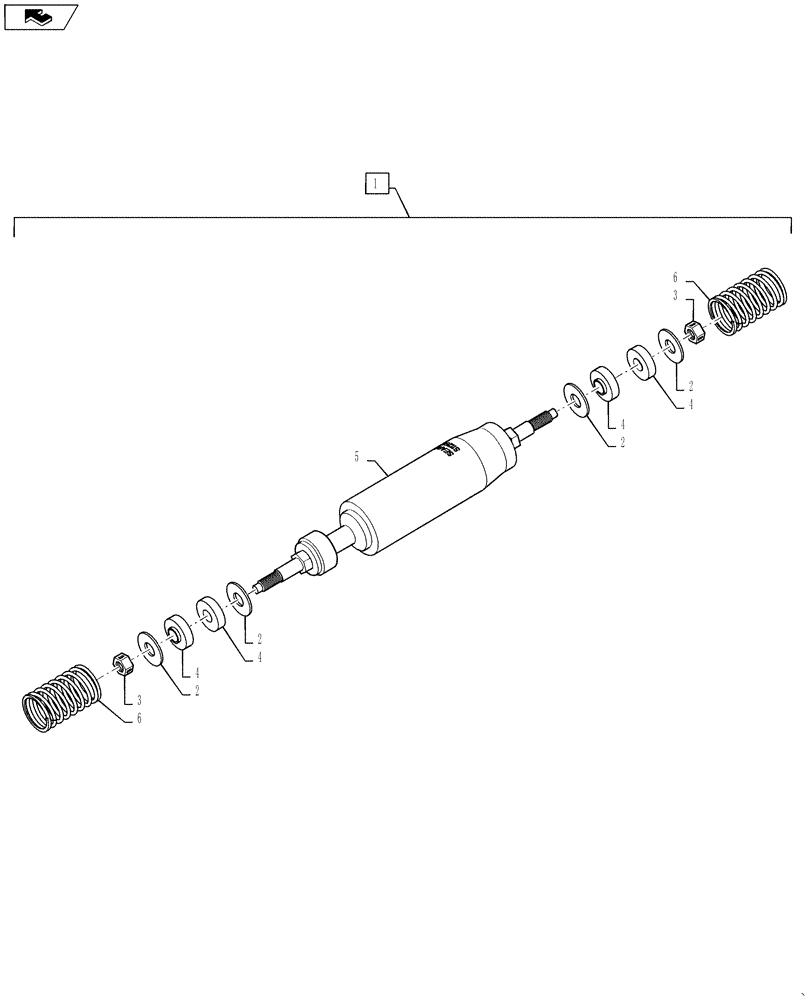

Схема запчастей Case IH STEIGER 500 - (90.120.BB[02]) - SEAT PEDESTAL & MECHANICAL SUSPENSION - LATERAL ISOLATOR SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
3
2
4
3
5
2
1
home
6
4
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87347947

SERVICE KIT

Lateral Isolator Service Kit - Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Flat, .406 Id x 1.00 x .06 Thk. - Incl in 1

4шт.

3

NSS

NOT SOLD SEPARAT

Nut, centerlock, 5/16-24 - Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Bushing - Incl in 1

4шт.

5

NSS

NOT SOLD SEPARAT

Shock Absorber - Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Spring - Incl in 1

2шт.
