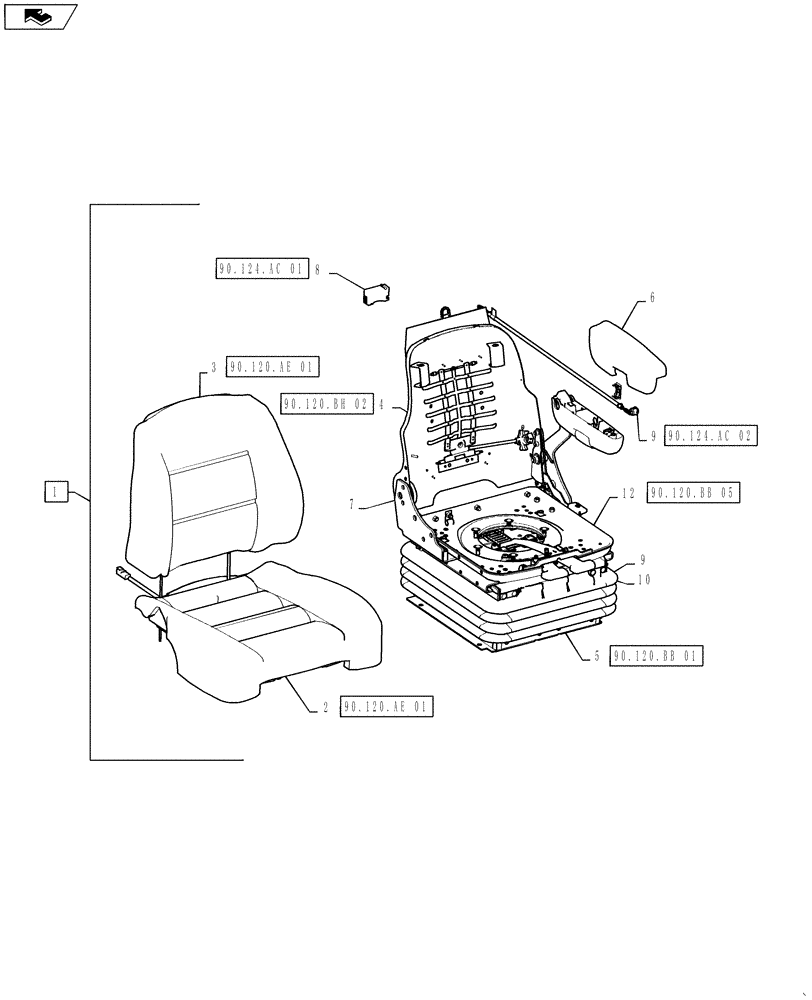

Запчасти Case IH STEIGER 500 (90.120.AD[01]) - SEAT - ASSY - OPERATORS - STANDARD & DELUX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84337499

DRIVER SEAT

Clothe, Standard, w/o Heat

1шт.

1

84337501

DRIVER SEAT

Clothe, Standard Delux w/Heat

1шт.

2

84173146

SEAT CUSHION

Bottom, Clothe, Used With 84337499 Seat Assy.

1шт.

2

84392247

SEAT CUSHION

Bottom, Clothe, Used With 84337501 & 84337503 Seat Assy.

1шт.

3

87758229

CUSHION

Back, Clothe, Used With 84337499 Seat Assy.

1шт.

3

84392249

SEAT CUSHION

Back, Clothe, Used With 84337501 & 84337503 Seat Assy.

1шт.

4

84347596

SERVICE KIT

Seat Top (Frame) Assy.

1шт.

5

84406039

SERVICE KIT

Seat Suspension Kit

1шт.

6

87620258

ARMREST

LH, Red Leather, Delux Semi-Active & Luxury Seat

1шт.

6

87620257

ARMREST

LH - Standard

1шт.

7

84173858

BRACKET

Armrest Mount

1шт.

8

84392269

CONTROLLER

Seat Heater

1шт.

9

84392266

HARNESS

Seat Heater & Switch

1шт.

10

87347943

SERVICE KIT

Boot, Suspension

1шт.

11

333659A1

PACKAGE,SERVICE

Boot Buttons (Not Shown)

1шт.

12

87347936

SERVICE KIT

Seat Swivel Assy.

1шт.
