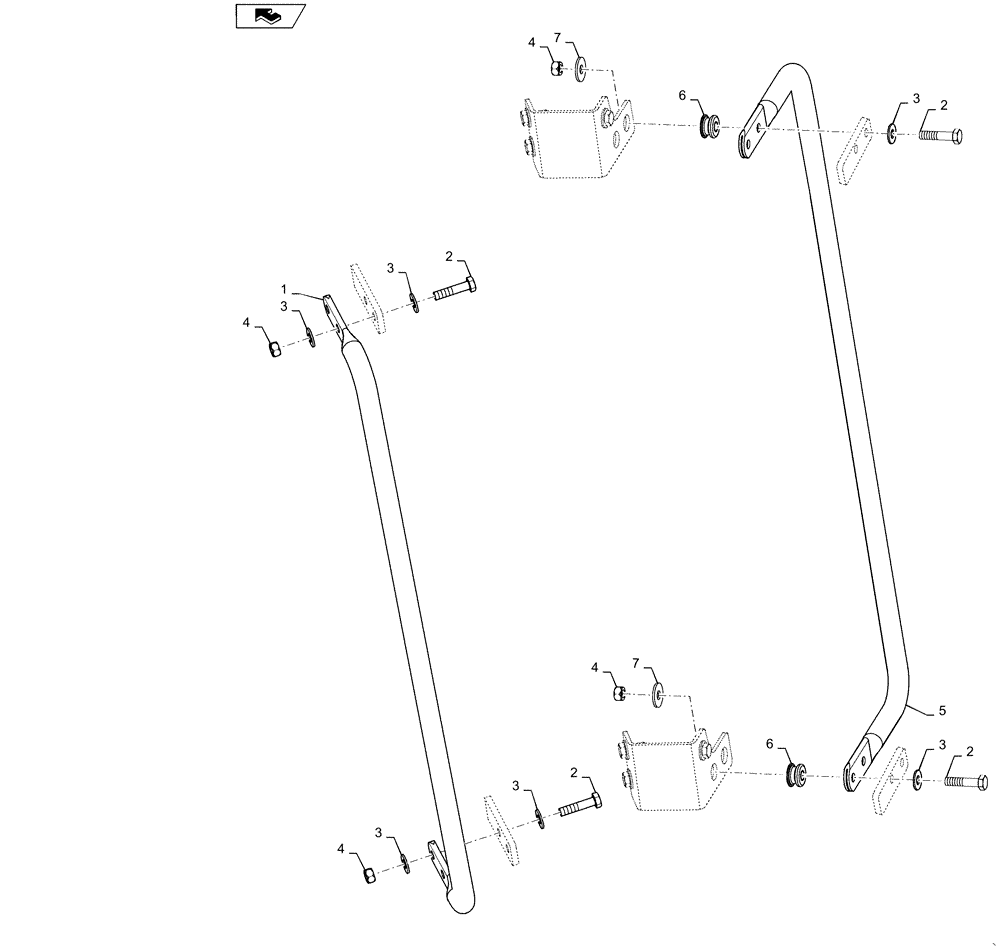

Запчасти Case IH STEIGER 500 (90.118.AX[01]) - HANDRAIL, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84255662

HANDLE

Left Hand Grab, LH

1шт.

2

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

5

84255661

HANDLE

Right Hand Grab, RH

1шт.

6

434177A1

ISOLATOR

Rubber Mount

4шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.
