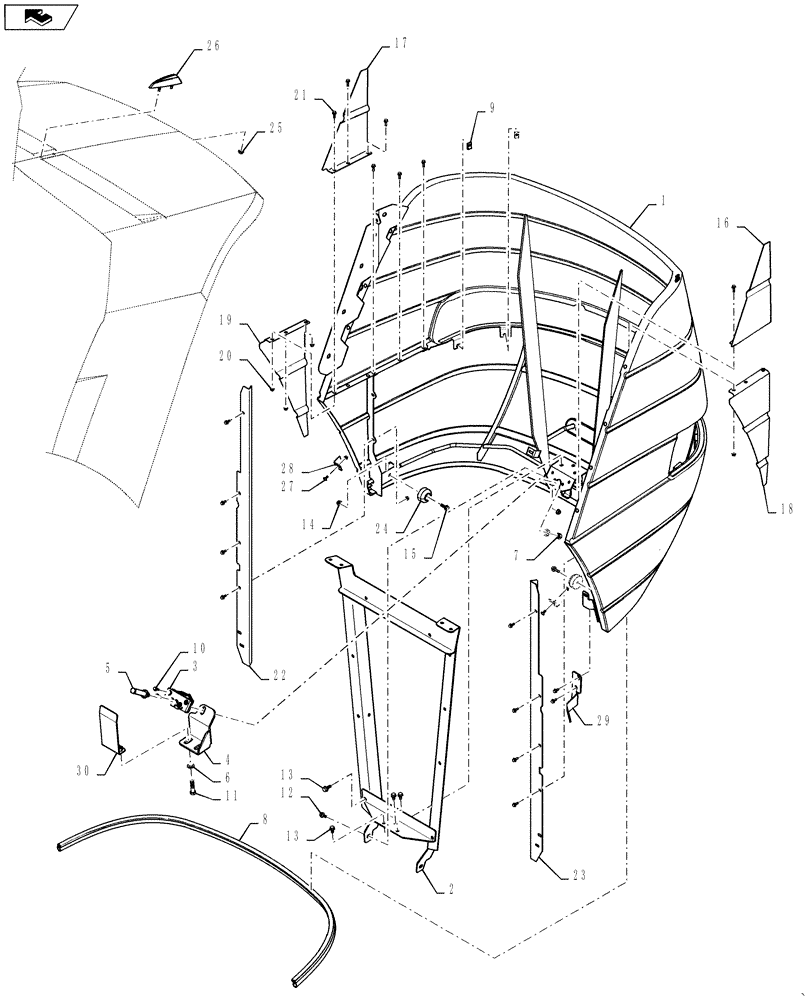

Запчасти Case IH STEIGER 500 (90.100.AB[05]) - ENGINE HOOD, GRILL AND SUPPORT - STEIGER 400 - 500 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84414135

GRILLE

Lower Weldment

1шт.

Lower Grille Only See Figure 90.100.AB(04) For Upper Grille

1шт.

2

84199643

SUPPORT

Grill

1шт.

3

84394414

LATCH

Hood

1шт.

4

47477608

STRIKER PLATE

Striker

1шт.

5

87556445

BOLT

Striker

1шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

7

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

8

84197326

SEAL

Lower Grill

1шт.

9

833-40306

SPRING NUT,M6, U

12шт.

10

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

12шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

15

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

16

84197331

PANEL

Upper RH

1шт.

17

84197332

PANEL

Upper LH

1шт.

18

84197333

PANEL

Lower RH

1шт.

19

84197334

PANEL

Lower LH

1шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

25шт.

21

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

11шт.

22

84341427

BRACKET, SUPPORTING

LH Seal

1шт.

23

84341426

BRACKET, SUPPORTING

RH Seal

1шт.

24

84167057

GUIDE

2шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

4шт.

26

87353799

GUIDE

Hood Sight

1шт.

27

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

2шт.

28

84171740

PLATE

Clip

4шт.

29

84347350

BRACKET

Hood Lock

1шт.

30

47477616

PLATE

Backing

1шт.
